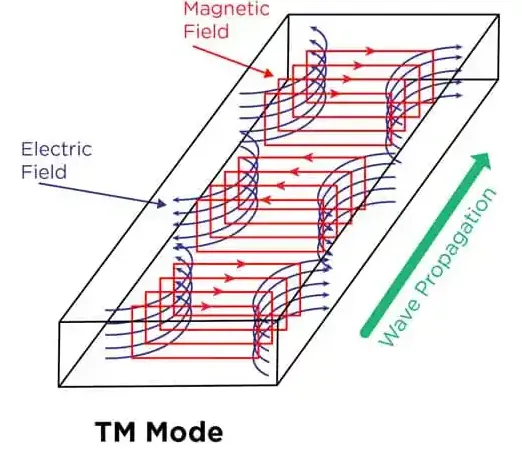

TEM (Transverse ElectroMagnetic) waves cannot propagate in ​​single-conductor waveguides​​ (e.g., rectangular or circular) because they require ​​two separate conductors​​ (like coaxial cables) to support both electric (E) and magnetic (H) fields orthogonally. In hollow waveguides, the ​​boundary conditions​​ force at least one field component to be longitudinal, creating ​​TE/TM modes​​ instead. For TEM propagation, the […]

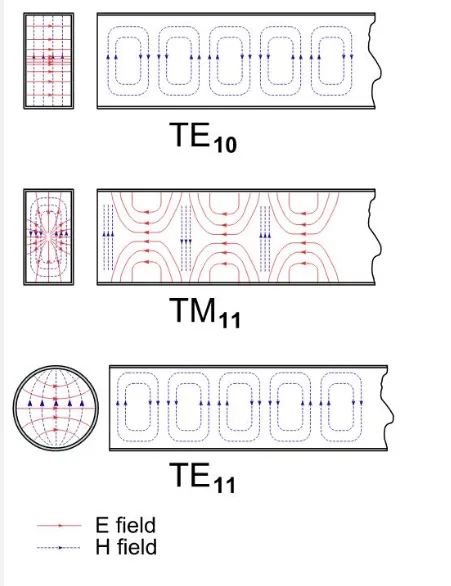

Waves in a waveguide are ​​confined electromagnetic modes​​ propagating along its structure, categorized as ​​TE (Transverse Electric), TM (Transverse Magnetic), or TEM (Transverse ElectroMagnetic)​​ modes. For example, in a ​​rectangular waveguide (e.g., WR-90 for X-band)​​, TE₁₀ mode dominates at ​​8.2-12.4 GHz​​ with a cutoff frequency of ​​6.56 GHz​​. Optical fibers guide ​​1.55 μm infrared waves​​

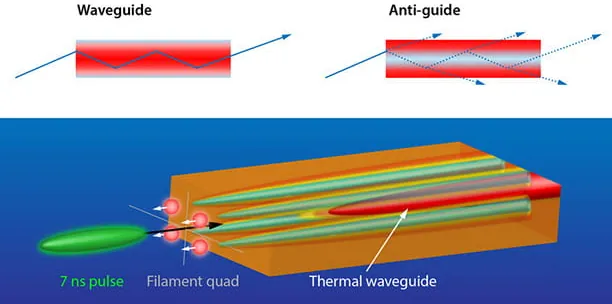

The ​​waveguide effect​​ occurs when electromagnetic waves (e.g., ​​microwaves at 2.45GHz​​ or light in fiber optics) are confined and propagated along a physical structure, reducing signal loss (<0.3dB/km in optical fibers). This effect relies on ​​total internal reflection​​ (critical angle ~82° for glass/air) or conductive boundaries (e.g., ​​rectangular metal waveguides​​). It enables efficient energy transfer

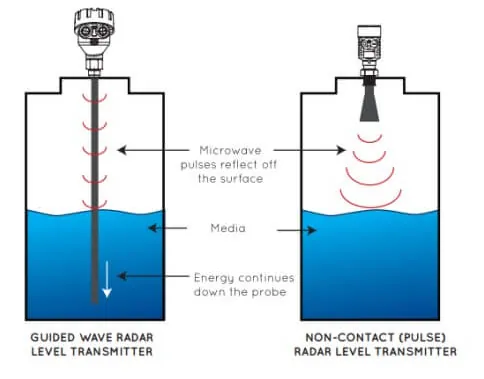

A ​​waveguide​​ is a physical structure (e.g., metal tube or fiber optic) that confines and directs electromagnetic waves (e.g., ​​5G mmWave at 28GHz​​ or optical signals) with low loss (<0.2dB/m). ​​Guided waves​​ refer to the propagation phenomenon itself, where energy travels along boundaries (e.g., ​​surface acoustic waves at 1-10MHz​​). Waveguides enable guided waves by controlling

​​Waveguide feeders​​ are typically pressurized to ​​3–5 psi (0.2–0.35 bar)​​ using dry air or nitrogen to ​​prevent moisture buildup​​ and ​​minimize signal loss​​ at high frequencies (e.g., 18–40 GHz). Systems include ​​pressure sensors​​ with alarms if levels drop below ​​1 psi (0.07 bar)​​, ensuring ​​optimal RF performance​​ and preventing ​​arcing​​ in radar/telecom applications. Regular ​​leak
