1.2M Quick-deploy Flyaway Antenna
A 1.2m quick-deploy flyaway antenna is a portable, easy-to-assemble satellite communication solution designed for rapid deployment in remote locations. It supports high-speed data transmission, making it ideal for emergency response, broadcasting, and mobile communication needs in field operations.

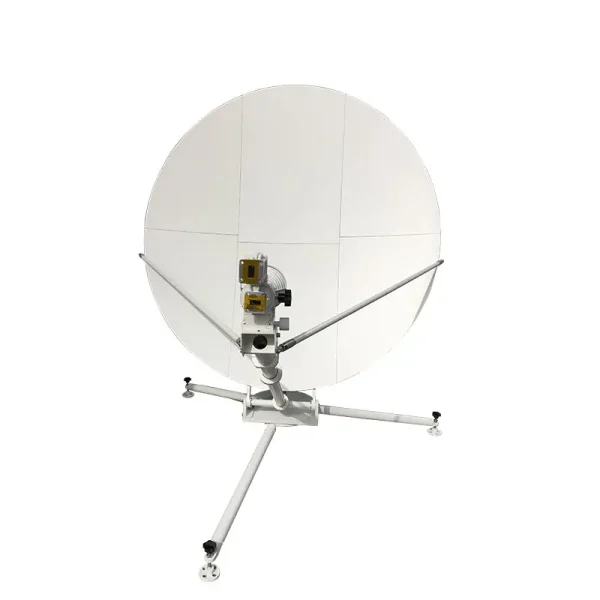

The 1.2 Meter Quick-Deploy Flyaway Antenna is a portable satellite communication system designed for rapid field deployment. It combines a six-piece carbon-fiber reflector, a pre-assembled tripod base with pull pins, Ku- and Ka-band feed options, adjustable feet, and engraved azimuth, elevation, and polarization settings. The antenna can be assembled in approximately five minutes without tools for broadcasting, emergency response, government, military, and remote industrial communication applications.
Portable SATCOM System
Rapid Deployment for Field Communications
The 1.2 Meter Quick-Deploy Flyaway Antenna System uses precision-assembled reflector panels and a rugged portable structure for high-speed satellite communication in field environments. Its segmented reflector, tripod base, positioning adjustments, and optional transport cases are designed to support fast setup and practical movement between operating locations.
Key Features
Built for Portable and Accurate Setup
The system combines lightweight reflector construction with mechanical features intended to reduce assembly time and support accurate field alignment.
Applications
The portable structure and rapid assembly design support temporary and mobile satellite communication requirements across the following operating environments.
Satellite News Gathering and Broadcasting
For mobile news crews, temporary broadcast links, and live event communication.
Government and Military Operations
For field communication requirements during governmental operations and military exercises.
Remote Business Operations
For oil, gas, mining, and other operations located beyond normal terrestrial communication coverage.
Emergency Response and Homeland Security
For establishing temporary communication channels during emergency-response activities.
Live Streaming and Critical Data Transmission
For live video transmission and other time-sensitive data communication tasks.
Technical Summary
Product Specifications
| Parameter | Specification |
|---|---|
| Reflector Material | Carbon Fiber |
| Diameter | 0.75 / 1.0 / 1.2 Meters |
| Frequency Bands | Ku and Ka Band |
| Setup Time | 5 Minutes, No Tools Needed |
| Mount Type | Pre-Assembled Tripod Base with Pull Pins |
| Feed Systems Available | Ku and Ka Band |
| Transportation | Optional Lightweight Cases |
| Adjustment Features | AZ, EL, Pol. Angles Engraved, Adjustable Feet |
Model Data Sheets
Download the corresponding document for model-specific RF, mechanical, transport, and environmental specifications.
