Factory-Direct Waveguide Parts & Antennas
Waveguide Components & Earth Station Antennas
We design, machine and test every part in our own plant in Xi'an, China. Standard models from 0.32 to 110 GHz, or custom builds from your drawing.

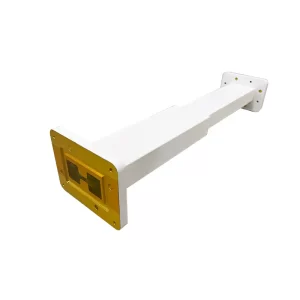

Standard & Double-Ridged Waveguide
Pick a Model, or Send Your Drawing

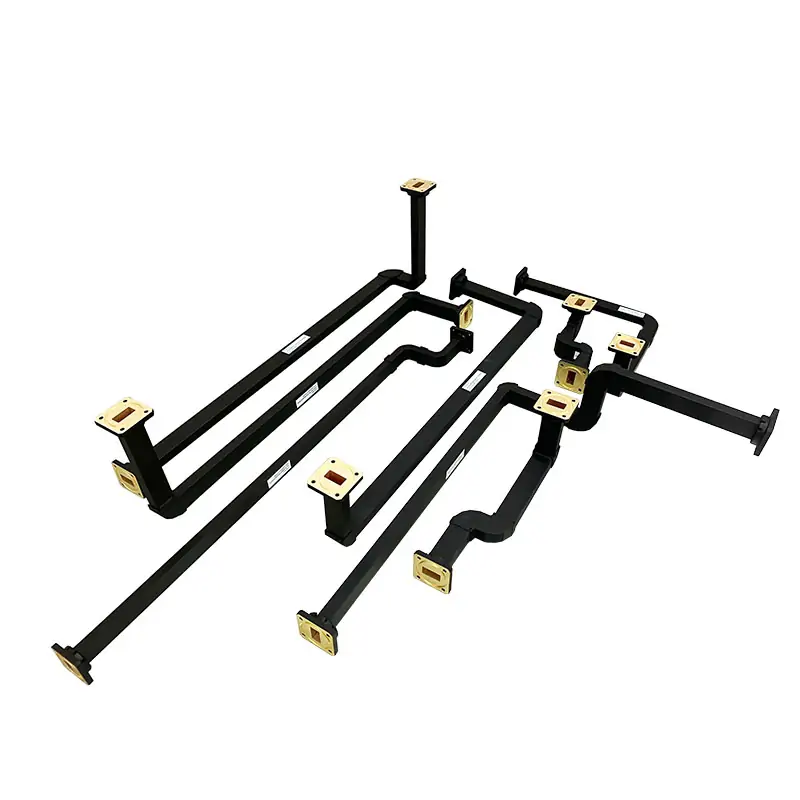

Bends, twists, couplers, switches, loads and more. Every part is RF-tested before shipping.
Feed Networks & SATCOM Antennas
Feed Systems and Antennas Up to 11.3 Meters

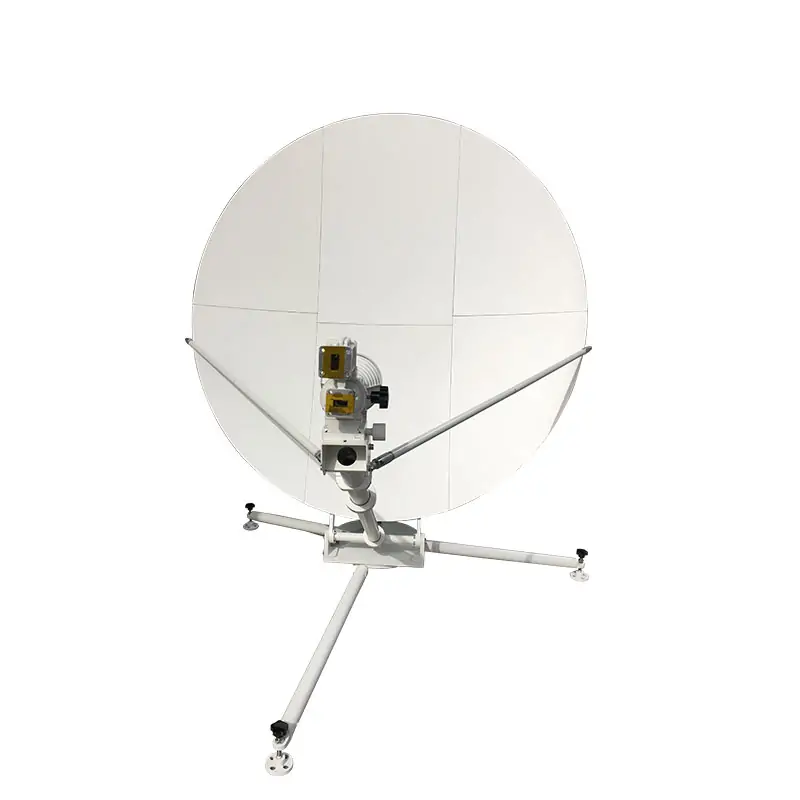

Feed horns, OMTs and full feed chains — plus antennas from 1.2 m flyaway to 11.3 m earth stations.

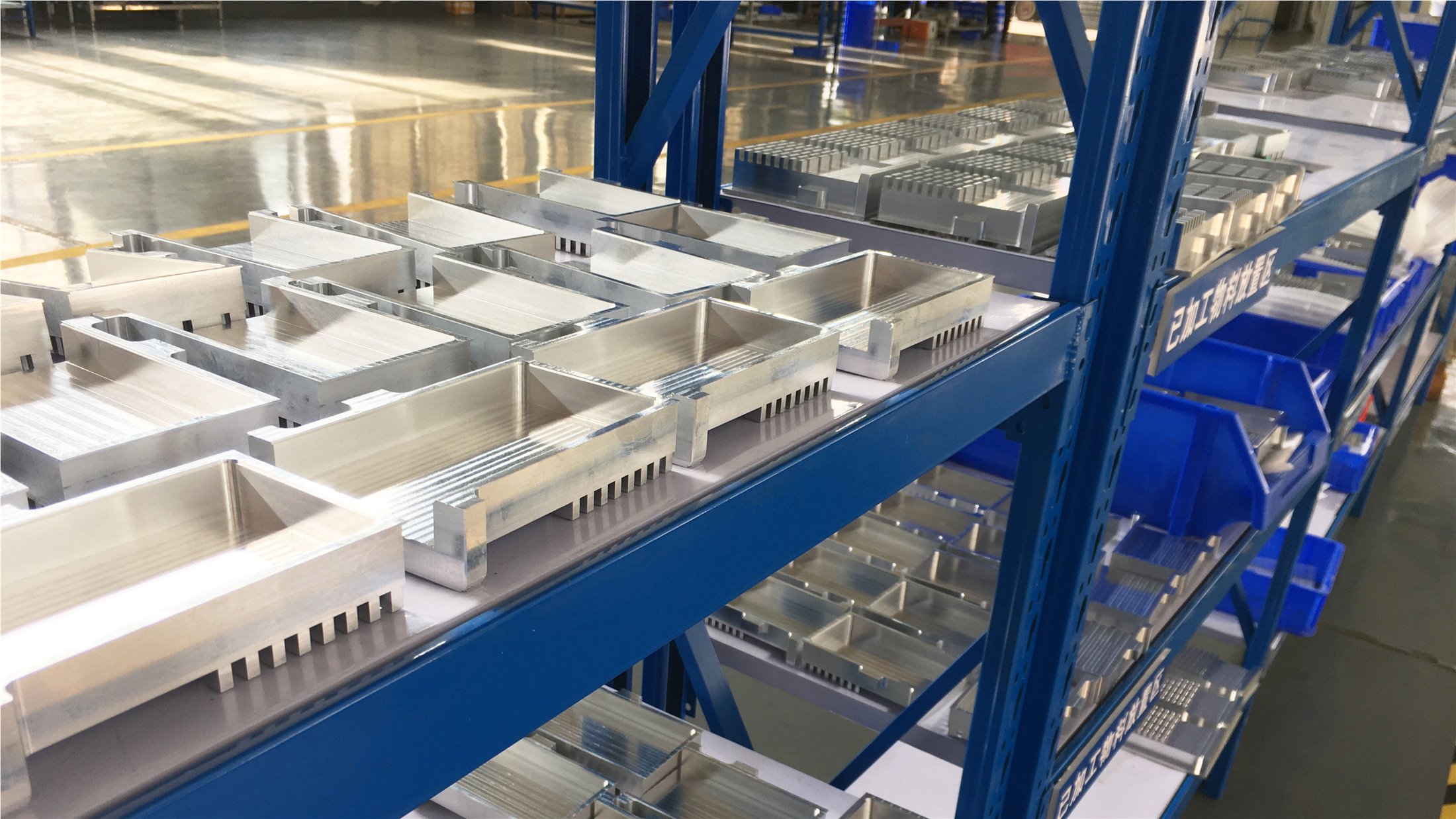

The Factory
25 Years of Waveguide and Antenna Manufacturing
Dolph Microwave began as the state-owned 806 Factory and became Dolph in 2001. Today our plant in Xi'an builds waveguide components, antenna feed systems and earth station antennas.
Machining, bending, brazing, plating and RF testing all happen in-house. One team owns your part from raw metal to shipped goods.
Our parts work in satellite communication and space exploration programs.
More about the factory
Products
Seven Product Lines
Every line with published models ready to order.
Why Dolph
Why Buyers Keep Ordering
One factory, one team, one warranty.
Everything in One Plant
Machining, brazing, plating, assembly and testing. Nothing is outsourced.
Tested Before Shipping
RF test up to 100 GHz, antenna test chambers and an environmental lab.
Custom Work Is Normal Work
Send a drawing or a sketch. We build drop-in parts that fit your system.
Easy to Buy From
Our staff handles export and customs paperwork every day. One-year warranty on every part.
Standard Parts
Published Models, Real Data
Pick a model, download the drawing, order.
Waveguide Miter Bends
E-plane and H-plane. PDF and STEP files for every model.
More Standard Parts

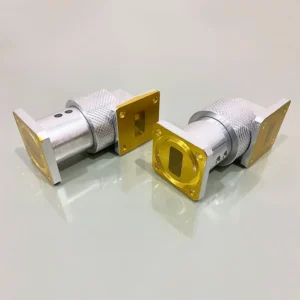

WR75 Waveguide Rotary JointFor radar and satcom feeds
View part

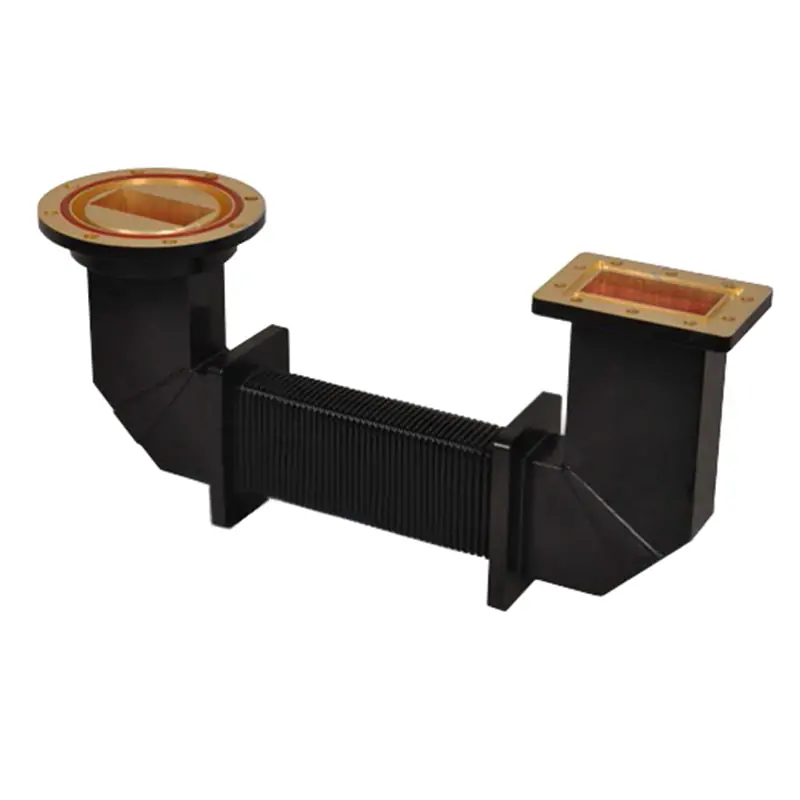

Seamless Flexible WaveguideTwistable, seamless flexible sections
View part
9.0 Meter Earth Station AntennaLarge-aperture earth station system
View part
High Power Fixed AttenuatorDouble-ridged, high power
View part
Circular Waveguide TubingStraight circular waveguide sections
View part

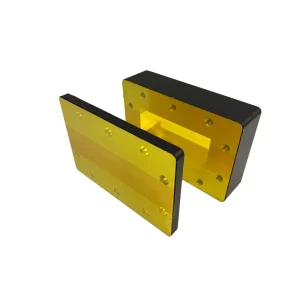

Waveguide Flanges, EIA & IECStandard flanges for every size
View part
Have a Drawing? Get a Price.
Our engineers check your drawing and reply with pricing and lead time. Volume production when you need it.
Email Your DrawingHow We Work
From Drawing to Delivery
Five steps, one accountable team.
Send Your Drawing
A drawing, a sketch, or a part number to match.
Review and Quote
We check manufacturability and reply with a price.

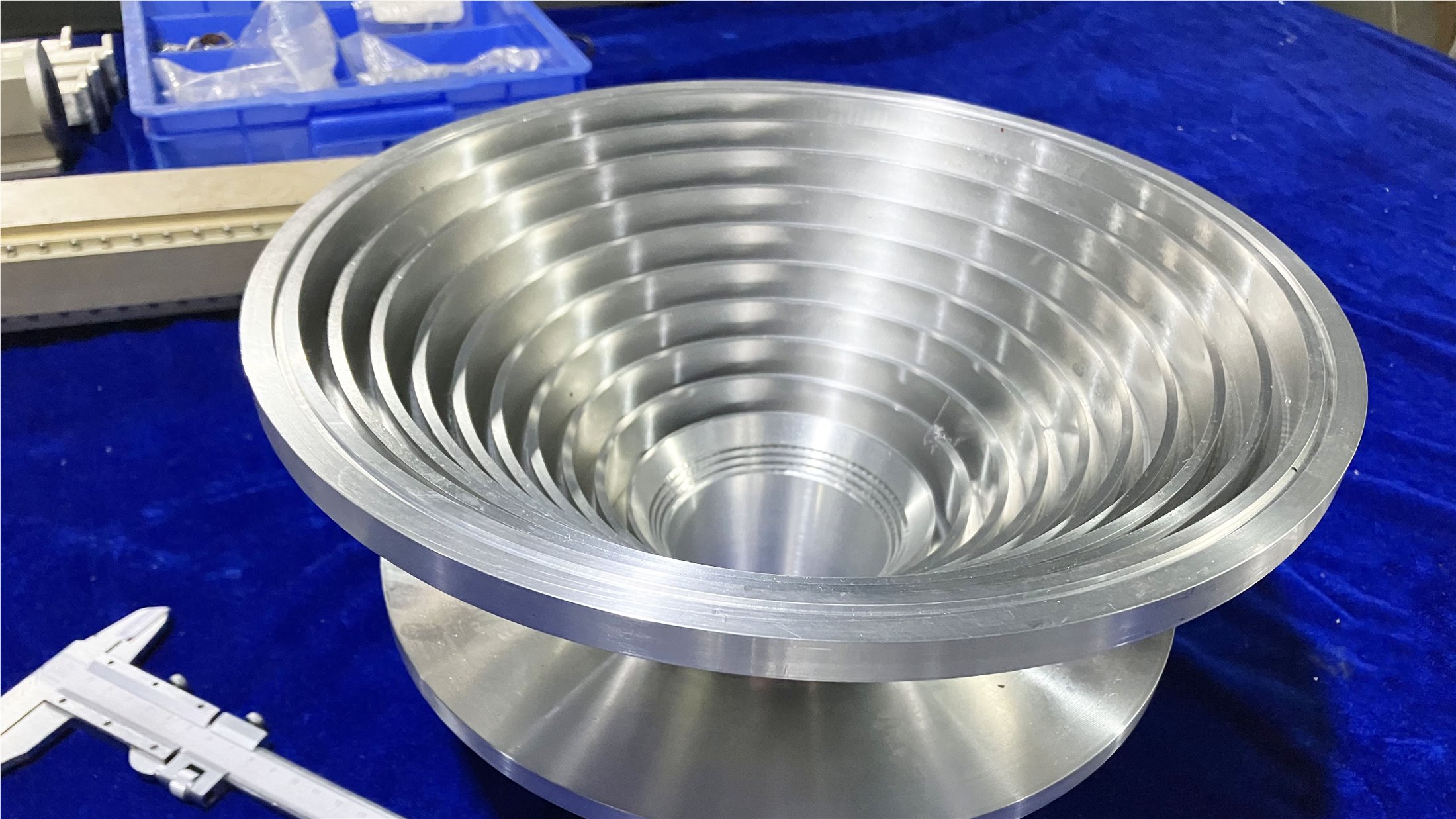

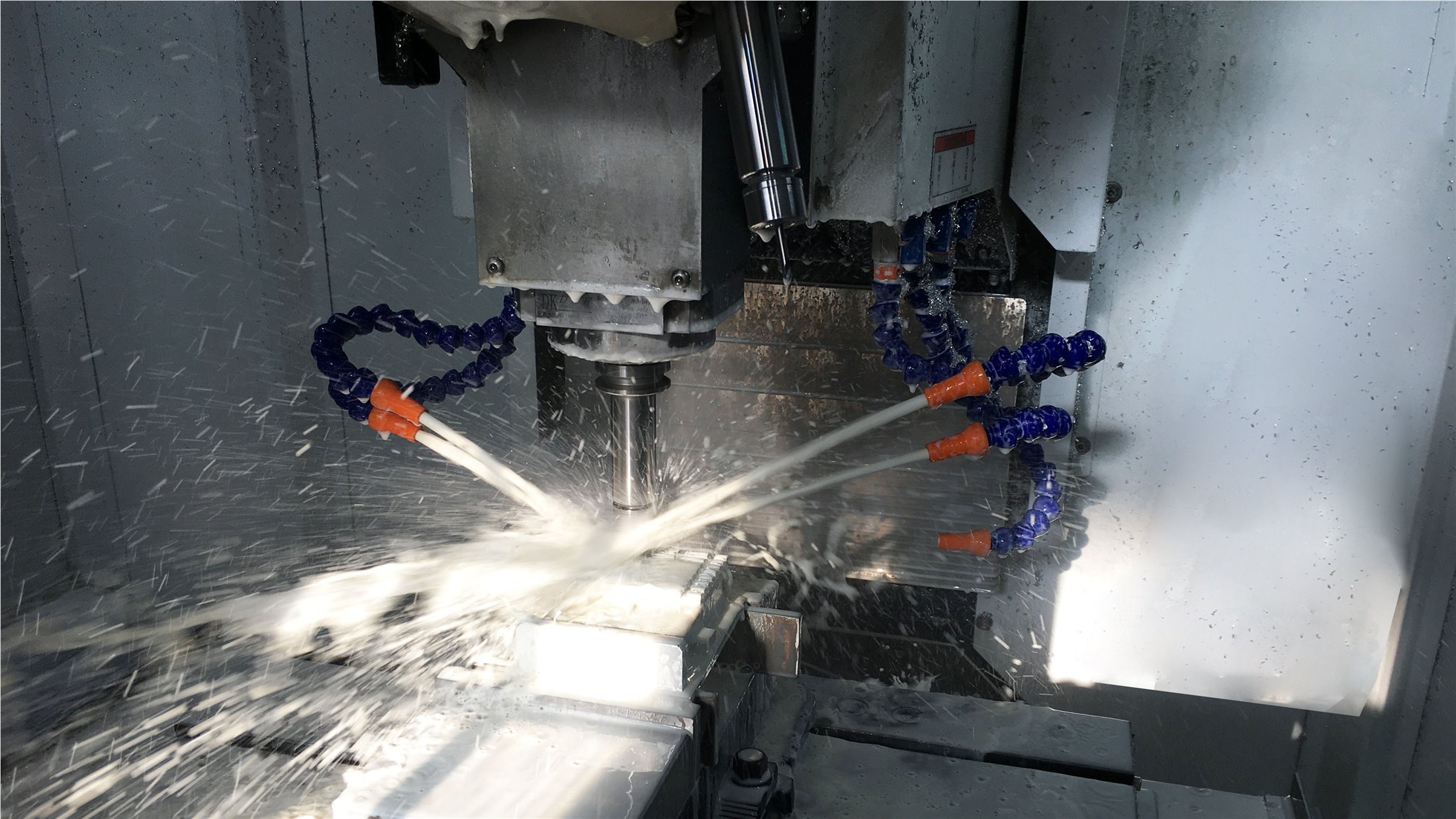

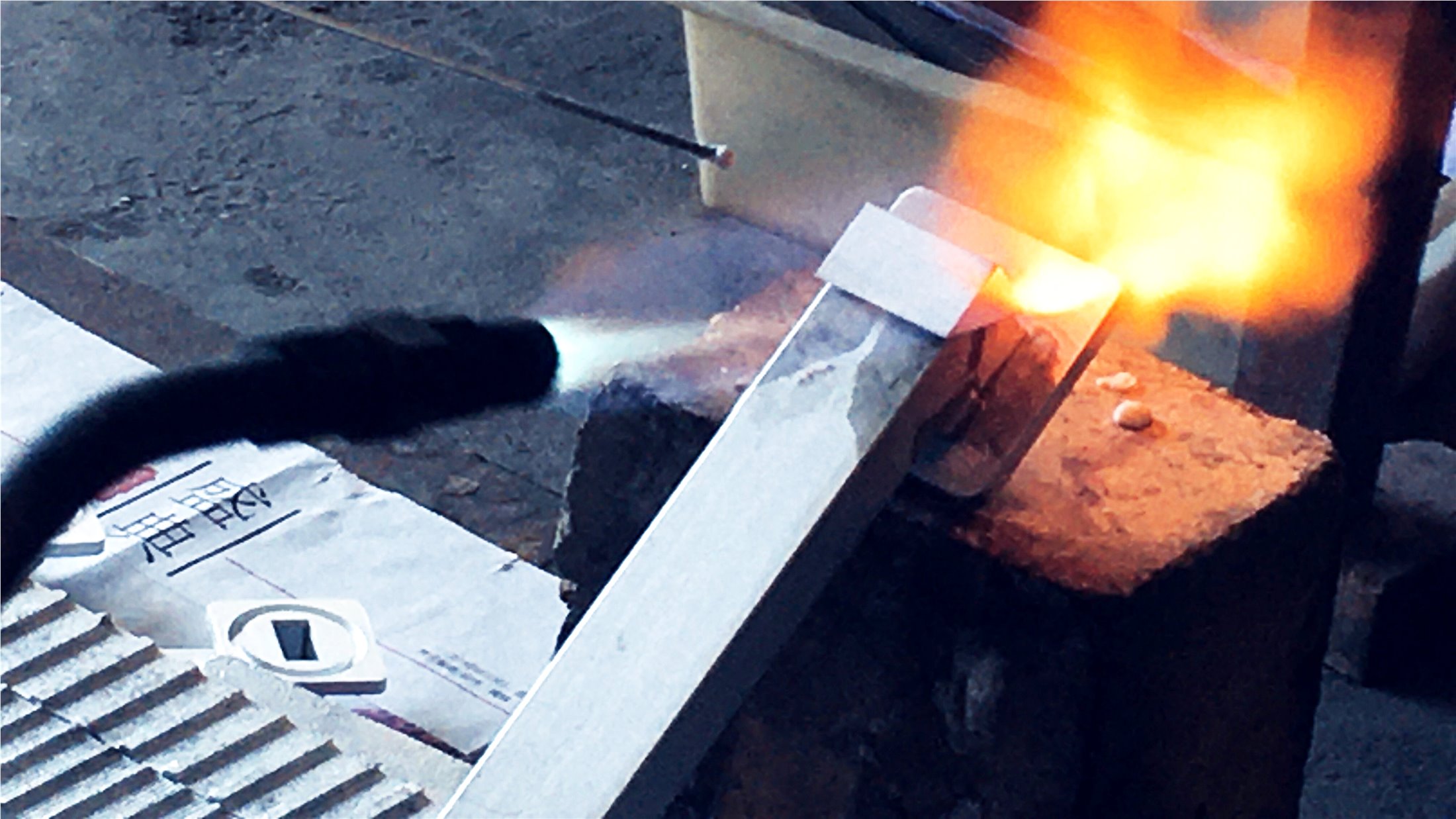

Machine and Braze
CNC milling, turning, forming and brazing in-house.
Plate and Assemble

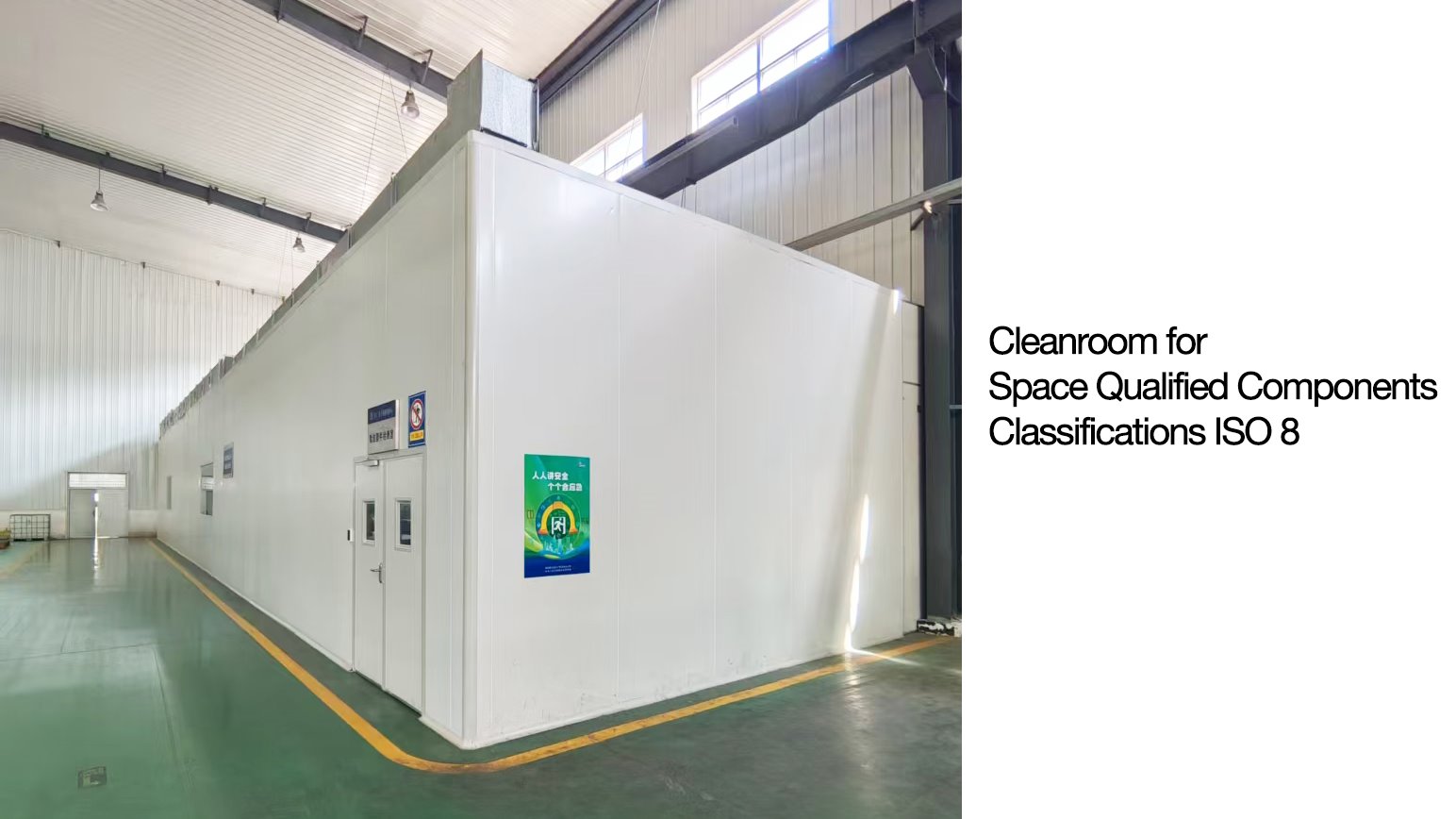

Silver or gold plating on request; clean-room assembly.
Test and Ship
RF test to 100 GHz, export packing, one-year warranty.

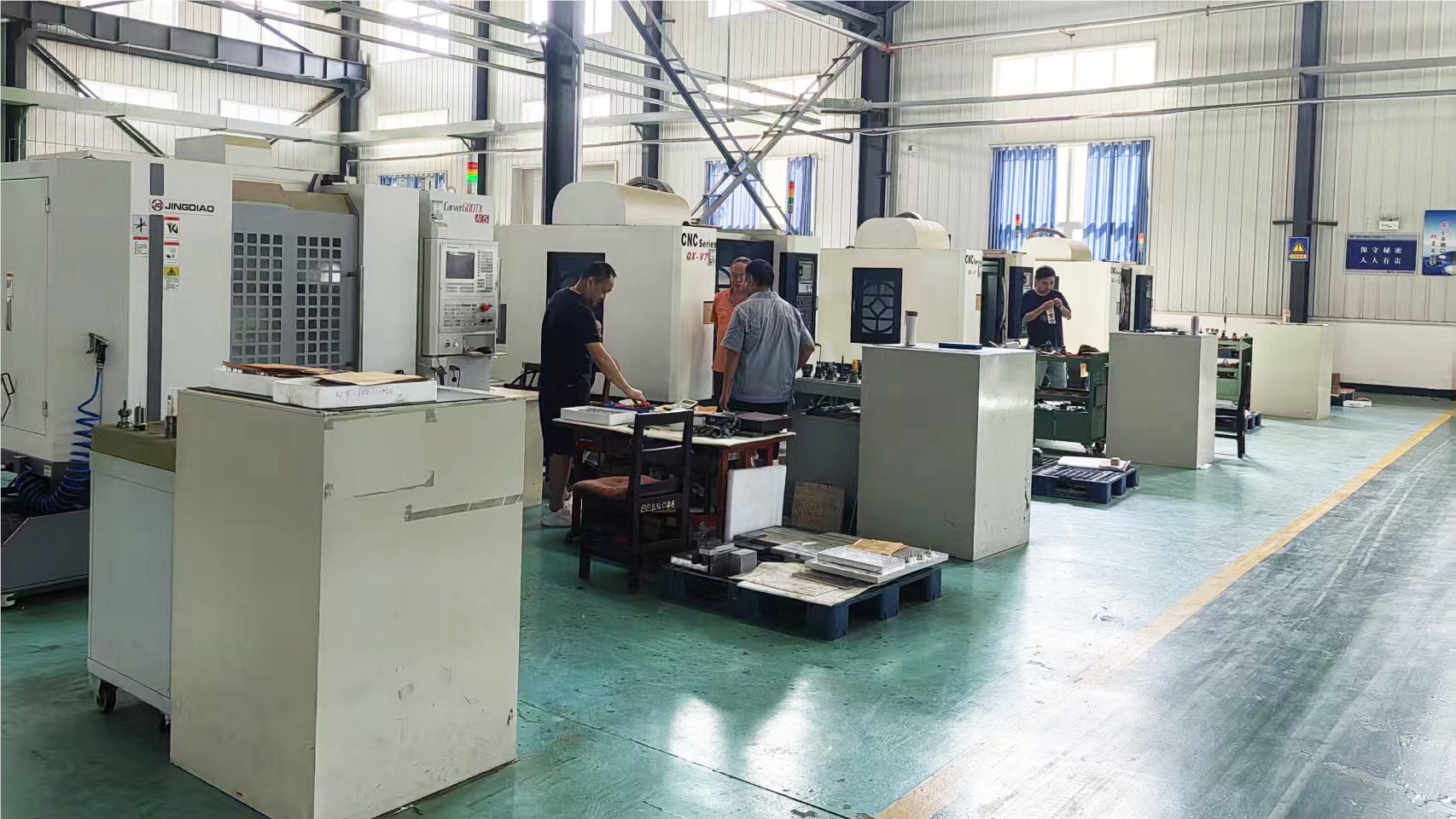

Capability
Machining and Testing, All In-House
If it is made of metal, we can make it.
Machine
Test

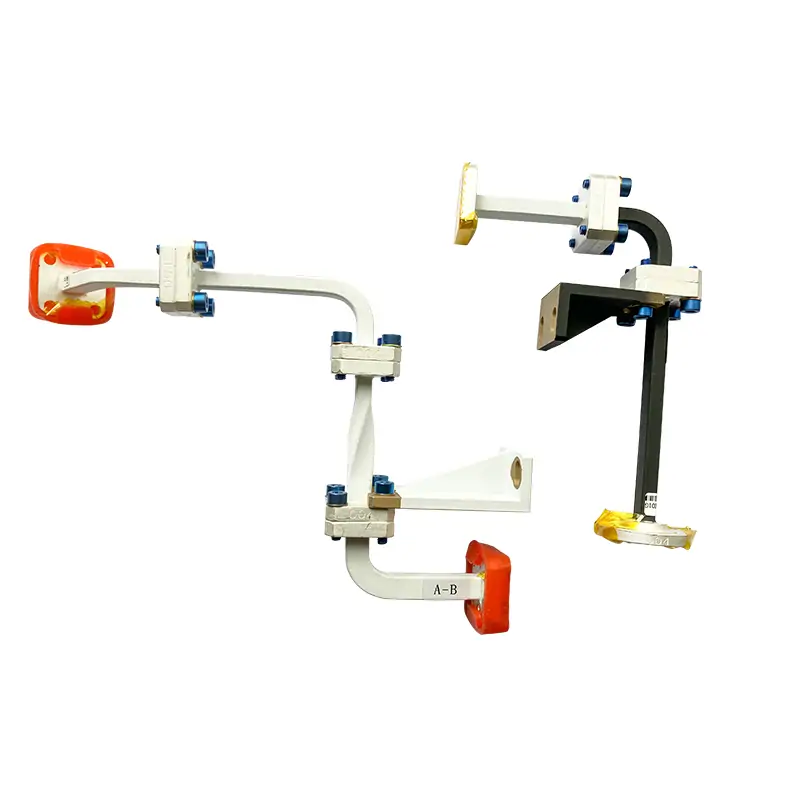

Custom & Space-Qualified

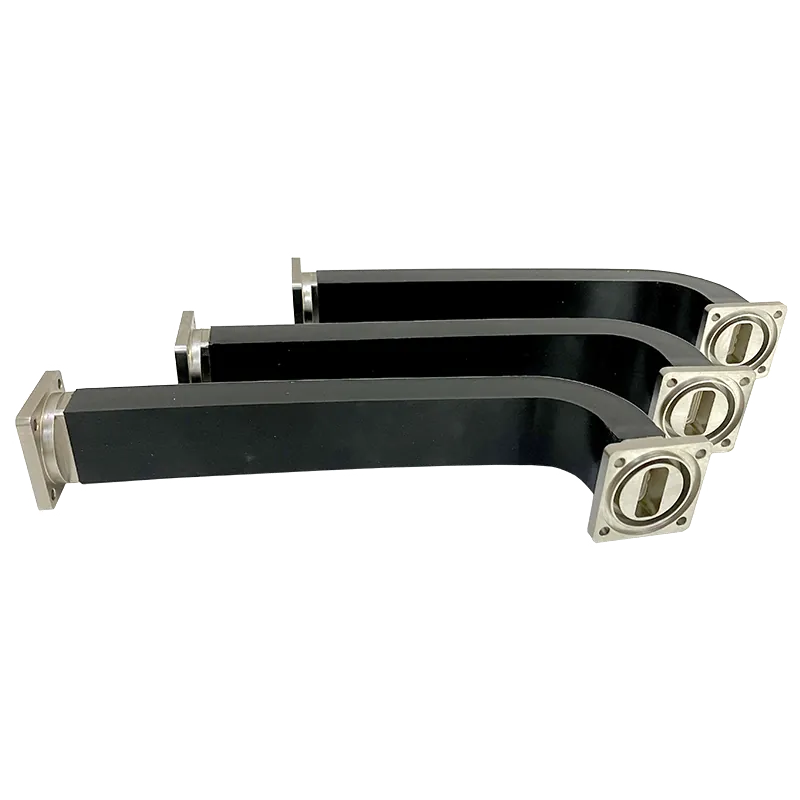

Custom Parts, Built to Your Drawing
From a sketch to a finished, tested part — including space-qualified builds.
Credentials
Quality You Can Check
The paperwork behind the parts.
RoHS Plating
Anodising and passivation to RoHS on aluminium parts.
Product Warranty
Bad material or workmanship? We replace or repair it free within one year of delivery.
From Our Engineers
Notes From the Factory Floor
Design notes and shop practice from the people who build your parts.
FAQ
Before You Send the Drawing
How do I start a custom waveguide or antenna project?
Send your drawing, sketch or the part number you want to replace to sales@dolphmicrowave.com. Our engineers review manufacturability, confirm material and plating, and return a firm quotation.
Which frequency range do your products cover?
Standard and double-ridged waveguide components run from 0.32 to 110 GHz, earth station antennas from 1.2 m to 11.3 m, and in-house RF measurement reaches 100 GHz.
How is quality controlled during production?
Every build follows our ISO 9001:2015 Quality Manual and Quality Procedure. Parts are verified with RF vector and scalar systems up to 100 GHz, anechoic chambers and an environmental laboratory before shipping.
What warranty do you provide?
One year from the date of delivery. Defects in material or workmanship are replaced or repaired free of charge within that period.
Can you build a drop-in replacement for an existing part?
Yes. Send the part number, drawing or even a sketch. We match the outline, flange and interface so the new part drops into your existing system.
Contact Dolph
Send Your Drawing. We Build It.
Send your drawing, your spec, or a part number. An engineer replies with a price and lead time.
FengHuiNan Road NO.34, High-Tech Zone, Xi'an, China — Tel/Fax (+86) 29-8881-0979
