Why Are Log Periodic Waveguide Antennas Popular

Log periodic waveguide antennas thrive due to ultra-wide bandwidth (e.g., 100MHz–40GHz), stable gain (10–15dBi), and low VSWR (<1.8); ideal for 5G/multi-band systems, they maintain directionality across frequencies, reducing deployment complexity vs. narrowband alternatives.

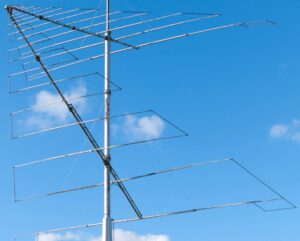

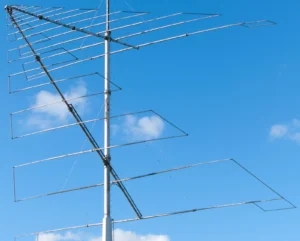

Ultra-Wideband Operating Capability

Imagine you are an engineer at a base station site facing an upcoming new 5G frequency band (like the 3.5GHz n78 band). Traditional single-band antennas (e.g., supporting only 1.8GHz) immediately become obsolete. You have to lead workers to climb a 40-meter-high tower, and within the limited antenna installation space, risk removing the old and installing the new.

The cost includes: labor and safety costs of approximately 5,000-10,000 RMB per tower climb, equipment procurement costs of thousands to tens of thousands of RMB per new antenna, and weeks of planning and construction cycles. But if the antenna itself can cover a wide range from 800MHz to 4GHz, then signals from 2G, 3G, 4G to the current 5G can all be “handled” by a single antenna.

Quantifying “Ultra-Wideband”

When we say a log-periodic waveguide antenna has “ultra-wideband” capability, we are actually describing a highly controlled performance envelope defined by multiple precisely measurable parameters. It’s like evaluating a car; you can’t just say “fast,” but must specify concrete data like its 0-100 km/h acceleration time, top speed, braking distance at 100 km/h, etc.

For an antenna, the core of this “performance envelope” is three hard indicators: the absolute range of frequency coverage, the percentage bandwidth measuring “width,” and the consistency of key performance parameters across the entire range.

Frequency Coverage Range

Just seeing the manual stating 0.8 GHz to 6 GHz is far from enough. How is this range defined? It typically means the antenna’s Voltage Standing Wave Ratio (VSWR) remains better than 2.0:1 across the entire interval. But this is just the threshold.

• “Effective” Gain is Key. Some antennas meet VSWR requirements but their gain drops sharply at the band edges. An excellent design requires that the gain attenuation at the band edges does not exceed -3dB (half the peak gain relative to the center frequency). This means that at 0.8GHz, its gain might be 8 dBi, reaching a peak of 11 dBi at the center 2.5GHz, and still remaining above 9 dBi at 6GHz. This smooth gain roll-off characteristic ensures usable signal strength across the entire band.
• “Pits” and “Peaks” Within the Band. Engineers also need to monitor the fluctuation of gain and VSWR within the band. A crude design might have a VSWR “peak” of 1.8 at 3.5GHz, but a VSWR “pit” of 2.5 at 2.2GHz. A high-quality antenna, through precise simulation and optimization, can suppress VSWR across the entire band below 1.5:1 and control gain fluctuation within ±1.5dB, providing a flat response curve.

Percentage Bandwidth

Even with the same absolute frequency range, the technical difficulty and value can be vastly different.

• Calculating Percentage Bandwidth. The formula is: Percentage Bandwidth = [ (f_H – f_L) / f_C ] × 100%, where f_C = (f_H + f_L) / 2 is the center frequency.
  • For an antenna covering 0.8-6 GHz: f_C = 3.4 GHz, Bandwidth = 5.2 GHz, Percentage Bandwidth = (5.2 / 3.4) × 100% ≈ 153%.
  • For another antenna covering 2-6 GHz: f_C = 4 GHz, Bandwidth = 4 GHz, Percentage Bandwidth = 100%.
  • Although the highest frequency is the same (6GHz), the technical difficulty and achieved value of the former are far higher than the latter because it covers lower frequency bands.
• The Concept of Octaves. Engineering often uses “octaves” to measure bandwidth difficulty. One octave means f_H = 2 f_L. The aforementioned 0.8-6GHz antenna covers nearly three octaves: from 0.8-1.6GHz (first octave), 1.6-3.2GHz (second), 3.2-6.4GHz (third).

Performance Consistency

This is the costliest consideration when integrating the antenna into an actual system. Severe performance fluctuations force the system to add complex compensation circuits or software algorithms.

• Stability of Input Impedance. The antenna’s input impedance should ideally be stable at 50 ohms. In a log-periodic antenna, as frequency changes, its input impedance fluctuates slightly around 50Ω. An excellent design can control this fluctuation range within ±5Ω (i.e., 45-55Ω). This means the power amplifier operates under a near-ideal load for over 95% of the time, achieving highest efficiency and minimal distortion.
• Variation of Pattern Beamwidth. The antenna’s horizontal beamwidth changes with frequency. At 0.8GHz, the beam might be wider, about 80 degrees, to ensure coverage; at 6GHz, the beam naturally narrows, perhaps to 40 degrees, to achieve longer transmission distance. A good design optimizes the element shape (e.g., using V-shaped dipoles instead of straight ones) to allow the beamwidth to change smoothly within a range like 65 degrees ±15 degrees, avoiding sudden pattern splitting or distortion at any specific frequency point.
• Stability of Front-to-Back Ratio. The front-to-back ratio refers to the difference between the main lobe gain and the back lobe gain, relating to anti-interference capability. This indicator should remain high across the entire band, e.g., >25dB, with fluctuations not exceeding ±3dB. If the front-to-back ratio suddenly drops to 15dB at a certain frequency, it means the system is extremely vulnerable to interference from the rear at that frequency.

Environmental Tolerance

All specifications should hold true under the promised operating temperature range of -40℃ to +70℃ and humidity conditions of 0-100%.

• Frequency Drift. Thermal expansion and contraction of antenna materials (e.g., dielectric supports) cause slight changes in electrical size, potentially leading to center frequency shift. High-quality antennas control the frequency temperature coefficient to within -100 ppm/℃ through material selection and structural design. This means for a temperature change of 50℃ and a center frequency of 3.5GHz, the drift is only 3.5GHz × 100ppm/℃ × 50℃ = 17.5 MHz, negligible compared to communication bandwidths of hundreds of MHz.
• Gain Variation. Under extreme temperatures, the conductivity of metal conductors changes, and connectors may introduce slight additional losses. Specifications require that the gain variation at high/low extreme temperatures does not exceed ±0.5dB of the value at normal temperature.

Implementation Principle

The log-periodic waveguide antenna achieves broadband not through complex circuits or expensive materials, but by relying on an ingenious geometric layout that “encodes” the frequency response into its physical dimensions. Its core secret lies in the synergy of three levels: an array of elements scaled strictly according to the log-periodic law, forming the “ladder” for signal processing; a closed waveguide feed system, acting as a low-loss, high-power “highway”; and the specific coupling method between the elements and the waveguide, ensuring efficient energy conversion from the highway to the exit. This broadband stability, achieved purely by structure rather than circuitry, enables it to operate in extreme temperatures from -40℃ to +85℃ with performance fluctuations not exceeding ±0.5dB and a lifespan easily exceeding 10 years.

Element Array

• The Scaling Constant τ is the Design Starting Point. This is the most critical structural parameter, defined as the ratio of the lengths (or spacings) of two adjacent elements: τ = Lₙ₊₁ / Lₙ = dₙ₊₁ / dₙ. This value is typically strictly controlled between 0.85 and 0.95. The closer τ is to 1, the slower the element size changes, and the smoother the antenna’s electrical performance (like impedance, gain), but more elements are needed to cover the same bandwidth, resulting in a longer, heavier antenna. For example, designing an antenna for 0.8-6GHz: if τ=0.87, the longest element (corresponding to 0.8GHz) is about 180mm, the shortest element (corresponding to 6GHz) is about 24mm, requiring about 16 pairs of elements in total. If τ=0.92, it might require over 22 pairs of elements, increasing the antenna length by about 30%.
• The “Active Region” is a Physical Area, Not a Point. When the operating frequency is f, the pair of elements whose length is closest to half-wavelength (λ/2) and the 2-3 pairs before and after it collectively participate in radiation, forming a physical region with a width approximately equal to 0.25λ. For example, at 2GHz (λ=150mm), the active region roughly covers several pairs of elements with lengths between 70mm to 80mm. It is precisely this mechanism of multiple element pairs working together that smooths out impedance variations, broadening the narrowband resonant characteristic of a single dipole into a continuous platform.
• Synergistic Effect of the Spacing Factor σ. Another key parameter is the spacing factor σ = dₙ / (4Lₙ), which affects the coupling strength between elements. σ is typically taken as 0.05-0.15.

Waveguide Feed

• Smooth Transition from Closed Waveguide to Open Space. The signal is input from a standard flange (e.g., CPR-159) at the rear into a rectangular waveguide with a cross-section of 58mm x 29mm. The interior of the waveguide is an enclosed metal cavity. At 6GHz, its transmission loss can be as low as 0.02 dB/meter, and its power handling capacity can reach kilowatts (average power), far surpassing coaxial cables.
• How is “Current” Induced onto the Elements? Energy is not directly connected via wires. Instead, a series of inclined radiating slots are cut into the broad wall (the 58mm face) of the waveguide, each slot corresponding to an external dipole pair. When an electromagnetic wave propagates inside the waveguide, a strong electric field is generated at these slots, which efficiently “excites” the current on the external dipoles through electromagnetic induction (coupling). This non-contact feeding fundamentally avoids losses and non-linearity caused by solder joint failure and contact resistance.
• “Path Difference” Design for Phase Synchronization. To make all elements radiate in phase, forming a sharp beam pointing directly forward, the phase of the electromagnetic wave arriving at each element must be precisely controlled. This is achieved by carefully designing the positional offset of the radiating slots on the waveguide. The center-to-center distance between adjacent slots is designed to be about half the guide wavelength (λg, e.g., ~120mm at 3GHz), and they are alternately arranged on either side of the waveguide’s centerline. Thus, when the wave reaches adjacent slots, due to the propagation in the waveguide itself and the slot offset, a phase difference of 180 degrees is automatically generated. The alternating slot positions introduce another 180-degree phase reversal.

Structural Rigidity

• Material Selection and Coefficient of Thermal Expansion (CTE). The antenna frame and dipoles are typically made of aluminum alloy (like 6061 or 5052), with a CTE of about 23.6 × 10⁻⁶/℃. The waveguide cover plate might be a zinc alloy die-casting with a matched CTE. This means over a temperature range of -40℃ to +70℃ (a 110℃ delta T), for a 1-meter long antenna, the total length change is 1000mm × 23.6×10⁻⁶/℃ × 110℃ ≈ 2.6mm. This tiny change is negligible compared to the wavelength of the lowest operating frequency, 0.8GHz (375mm), ensuring the electrical performance across the entire band does not “drift” with temperature.
• Integrated Mechanical Integration of Elements and Waveguide. The dipoles are not simply screwed onto a bracket; they are precision-stamped to form a mechanical whole with the waveguide cover plate or internal feed strip. This structure can withstand wind pressure generated by wind speeds up to 100 km/h, and vibrations and shocks of 5-10g during transportation, ensuring that the elements do not loosen or deform after long-term use, thus “locking in” the calibrated electrical performance from the factory.

Core Value

The difference between a log-periodic waveguide antenna priced at 8000 RMB and a traditional narrowband antenna priced at 2000 RMB is far more than the 6000 RMB price tag. The true core value lies in placing it within the full lifecycle operational model of a typical communication base station (lifecycle of 10 years, carrying 4-5 different standard networks), where it can reduce the single-site comprehensive CAPEX and OPEX by 15% to 25%.

This value is not claimed out of thin air; it stems from three quantifiable transformations: converting ultra-wide bandwidth into significant reductions in hardware and rental costs, converting stable radiation characteristics into tangible improvements in network KPIs, and converting robust physical structure into significant reductions in maintenance work order quantity and risk.

Calculating the “One-Time Economic Account” for Hardware and Installation

• Direct Consolidation of Hardware Procurement Costs. A site needing to cover 900MHz (GSM), 1800MHz (DCS), 2100MHz (WCDMA), 2600MHz (LTE), and 3500MHz (5G) would require at least 3 antennas if using traditional single or dual-band antennas. Assuming an average price of 2500 RMB per antenna, the hardware procurement cost is about 7500 RMB. A wideband log-periodic antenna with equivalent performance might cost 8000-10000 RMB. Although the single antenna seems more expensive, the total hardware expenditure saves over 30% (about 5000 RMB).
• Sharp Reduction in Tower Space Rental and Installation Costs. Tower space rental for communication towers is typically calculated at 1000-2000 RMB per antenna per year. Using 1 antenna to replace 3 saves 2000-4000 RMB annually in rental fees, amounting to 20,000 to 40,000 RMB over a 10-year lifecycle. More importantly, installation cost: the comprehensive cost of a single lifting operation (including crane rental, labor, safety measures) is about 5000-10000 RMB. Installing 1 antenna once saves at least 10000 RMB in installation fees compared to installing 3 antennas in phases, and avoids the safety risks of two additional high-altitude operations.
• Savings in Ancillary Equipment Costs. One less antenna means using 30 to 50 meters less feeder cable (average price 80 RMB/meter), 2 fewer grounding kits, and several fewer jumper connectors. These seemingly scattered costs, across a network with 1000 sites, could total savings in the millions of RMB.

“Hidden Revenue” from Improved Network Quality and “Reduced Complaints”

• Better Coverage Uniformity, Reducing Blind Spot Probability. Due to better pattern consistency across the entire band in wideband antennas, the fluctuation in horizontal beamwidth is controlled within ±15 degrees (e.g., 65 degrees ±15 degrees). This means higher accuracy in coverage prediction during network planning simulations. Compared to potential coverage “cracks” from using multiple narrowband antennas, it can reduce the weak coverage area in the target region by 5% to 10%, directly translating into lower user complaint rates and improved network scores.
• Higher Port Isolation, Increasing Cell Capacity. In multi-band shared antenna systems, isolation between signals of different bands is crucial. The waveguide feed structure of log-periodic antennas naturally provides high isolation of ≥30dB. Compared to the 25dB isolation of some traditional panel antennas, this can reduce intermodulation interference by 3-5dB. This is equivalent to improving the signal-to-noise ratio for cell-edge users by 3-5dB, potentially increasing downlink rates by 15% to 25%, which has a significant effect on alleviating network congestion, especially in dense user areas.
• Support for More Flexible Spectrum Refarming Strategies. When an operator needs to migrate a spectrum band (e.g., 1800MHz) from 2G service to 4G service, no hardware changes or site visits are needed; it can be completed with software configuration on the network management side. This process can shorten the spectrum refarming cycle from the traditional 3-6 months to 1-2 weeks, quickly releasing spectrum value and seizing market opportunities.

Operational Efficiency

• Reduced Number of Failure Points and Improved MTBF. Failures in antenna systems often occur at connector waterproofing, feeder cable damage, etc. Reducing from 6 external connectors for 3 antennas to 2 connectors for 1 antenna directly reduces the probability of failure due to connector water ingress by over 60%. The Mean Time Between Failures (MTBF) for a high-quality log-periodic antenna can exceed 200,000 hours (approx. 23 years), whereas ordinary antennas might be around 100,000 hours. This means that over a 10-year lifecycle, the expected number of maintenance work orders related to antenna failure can be reduced from possibly 1-2 occurrences to close to zero.
• Resilience to Extreme Weather. Its robust, integrated waveguide structure can withstand wind speeds of 60 m/s (equivalent to a Category 17 typhoon), with a wind load coefficient reduced by 20% compared to conventional antennas. In coastal high-salt-fog areas, its all-aluminum alloy structure and high-quality coating process ensure no functional corrosion occurs within 10 years under C5-level corrosive environments. This avoids emergency inspections and premature replacements due to harsh weather, potentially saving 5% to 8% of the site’s total operational maintenance budget annually.
• Simplified Spare Parts Inventory and Logistics Management. For operators with thousands of base stations, maintaining spare parts for different antenna types is complex. Unifying 3 different types of antenna spares into 1 type can significantly reduce warehousing, logistics costs, and management complexity, lowering spare parts inventory capital occupation by about 40%.

Good Directivity and Medium Gain

For a typical wideband log-periodic antenna covering 800-2500MHz, its gain is usually stable in the range of 8±2 dBi, and its Half-Power Beamwidth (HPBW) is approximately 60° to 80° in both the E-plane and H-plane.

It not only concentrates transmitted energy within a sector area of about 60°, increasing the effective radiated power by about 6 times (compared to an isotropic radiator), but also provides a high front-to-back ratio of 15-20 dB, effectively suppressing over 90% of interference signals from the rear.

Directivity

An antenna used for 5.8 GHz point-to-point communication aims to concentrate over 90% of the radiated power into a narrow “pipe,” and its half-power beamwidth might be designed to be only 40°. Another antenna for 2.4 GHz indoor coverage needs a wider 80° beam to cover a larger area.

The precision of this control is extremely high. A 1 millimeter error in element length or a 5-degree deviation in installation tilt can cause the main beam pointing to deviate from the intended direction by 2-3 degrees. Over a transmission distance of 1 kilometer, this results in a signal coverage offset of 35 meters, reducing the received signal strength by 3 dB.

1. The Main Lobe Should Be as Sharp and Controllable as a Blade

• Practical Significance of BeamwidthThe Half-Power Beamwidth (HPBW) indicator directly determines the antenna’s coverage area. For example, a base station antenna with a gain of 12 dBi and a horizontal plane beamwidth of 60° can cover a ground width of approximately 2 × 500 × tan(60°/2) ≈ 577 meters at a distance of 500 meters from the base station. If we replace the antenna with a high-gain model with a beamwidth of 30° and gain of 15 dBi, the coverage width immediately narrows to about 268 meters, but the signal strength in that area will increase by about a factor of 2. In satellite communications, beamwidth requirements are even more stringent. To aim at a geostationary satellite at 36,000 kilometers altitude, the antenna’s beamwidth must be as narrow as 1°, meaning the antenna’s pointing accuracy must be better than 0.5°, otherwise the signal will be lost.
• Sidelobes are “Energy Leakage” That Cannot Be IgnoredThe ideal pattern has only one main lobe, but real antennas produce multiple sidelobes. These sidelobes represent wasted energy and a source of interference. Industry standards typically require the first sidelobe level to be -12 dB or more below the main lobe peak, and an excellent antenna can achieve -15 dB or lower. This means the radiated power of the sidelobe is less than 3% of the main lobe. In radar systems, a -10 dB sidelobe might erroneously detect an interfering target illuminated by the sidelobe at a distance of 30 kilometers, causing a false alarm. Through the gradual design of log-periodic antenna elements and the shielding effect of the waveguide structure, the average sidelobe level can be effectively suppressed below -18 dB.
• Front-to-Back Ratio is the “Shield” for the BackThe Front-to-Back Ratio (F/B Ratio) measures the antenna’s ability to resist interference from the rear. For an antenna with an F/B ratio of 18 dB, the strength of the interfering signal received from the rearward 180°±30° range is only 10^(-18/10) ≈ 1.6% of the forward main signal. In the crowded 2.4 GHz ISM band, your wireless access point might receive a strong interference signal from another access point 50 meters behind it. If your antenna’s F/B ratio is 15 dB, this interference is suppressed by 96.8%; if increased to 20 dB, the suppression effect reaches 99%. This 4.2% difference is enough to increase the signal-to-noise ratio by 5 dB, potentially directly determining whether a video call stutters or not.

2. How to “Sculpt” the Desired Radiation Pattern

• Precise Ratio of Number of Elements and SpacingThe sharpness of the antenna pattern is directly related to its “electrical size.” There is an approximate relationship between the number of elements (N) in a log-periodic antenna and its gain (G): G ≈ 10 * log10(2 * N). That is, to achieve a gain of 10 dBi, you need at least 10^(10/10) / 2 = 5 active elements (practically more are needed to cover the band). The ratio of element spacing (d) to wavelength (λ), d/λ, determines the beam shape. This ratio is typically designed between 0.1 and 0.2. When d/λ increases from 0.15 to 0.18, the beamwidth may narrow by 5%, but the sidelobe level may deteriorate by 2 dB.
• How the Waveguide Structure Closes the “Back Door” for EnergyTraditional log-periodic dipole antennas are bidirectional radiators; energy leaks in both forward and backward directions. The core function of the waveguide structure is to add a metal cavity with a depth of about λ/4 (at the lowest operating frequency) behind it. This cavity acts like an acoustic resonance box but with the opposite effect: signals arriving from the rear and signals reflected from the bottom of the cavity are out of phase at the opening, canceling each other out. A well-designed waveguide can reduce the backward radiated energy by over 90%, thereby increasing the F/B ratio from 10 dB for a common structure to 18 dB or higher. The dimensional tolerance for this cavity is strict; a 2 mm machining error could cause the F/B ratio to drop by 3 dB at the 900 MHz frequency point.

3. In Real Scenarios, the Pattern Also “Deforms”

• Distortion Caused by Installation LocationWhen installing the antenna on the side of a tall tower or near rooftop railings, metal objects act as reflectors. If the antenna is less than 0.5 meters from a tower leg, its pattern will be severely distorted; the main beam might be twisted by 10-15 degrees, and the F/B performance might plummet from 18 dB to 8 dB. Correct installation requires the antenna to be at least 3-5 wavelengths away from any obstacle. In the 800 MHz band, this distance is approximately 1.2 meters.
• Superposition Effect of Environmental ReflectionsIn urban environments, signals arrive at the receiver via multiple paths (walls, glass, etc.), creating multipath effects. This causes the actual received signal strength to fluctuate by 20-30 dB over a distance of half a wavelength (about 20 cm). An antenna with good directivity, with its narrow beam, can effectively reduce the number of multipath signals received, lowering the signal fluctuation range to within 10 dB, thereby significantly improving link stability. Tests show that in dense urban areas, using a 10 dBi directional antenna can improve the average bit error rate from 10⁻⁴ to 10⁻⁶ compared to using a 5 dBi omnidirectional antenna.

Gain

An antenna with a nominal gain of 15 dBi means that in its direction of maximum radiation, its radiated power density is 10^(15/10) ≈ 31.6 times that of an ideal point source (isotropic antenna). But behind this is the product of two key factors: radiation efficiency (typically achievable above 90%, meaning less than 10% of energy is converted to heat loss) and directivity.

For example, a log-periodic antenna with a physical length of 1.2 meters, covering 800 MHz to 3 GHz, can have a directivity of 12 (approx. 10.8 dBi). If its radiation efficiency is 95%, the total gain is approximately 10.8 + 10log10(0.95) ≈ 10.7 dBi. *Every 3 dBi increase in gain theoretically increases the effective transmission distance by about 41%, or doubles the signal strength at the receiver for the same distance.*

1. Where Does Gain Come From?

• Directivity is the Theoretical CeilingDirectivity (D) is a purely theoretical value, assuming the antenna has no losses and all input power is perfectly radiated. Its value is determined entirely by the antenna’s three-dimensional radiation pattern. For an ideal dipole antenna, its maximum directivity is 1.76 dBi. For an antenna with a sharp main lobe and very low sidelobes, its directivity can be very high. A parabolic antenna with 20 dBi gain might have a beamwidth of only about 10 degrees, compressing almost all energy into this narrow conical volume.
• Radiation Efficiency is the Loss in RealityRadiation efficiency (η) is the percentage of input power successfully converted into radiated electromagnetic waves. An antenna with an efficiency of 80% dissipates 20% of the input power as heat in the antenna’s conductor and dielectric materials. The total gain (G) equals the directivity (D) multiplied by the radiation efficiency (η), expressed in decibels as G(dBi) = D(dBi) + 10log10(η). If an antenna has a directivity of 10 dBi but a radiation efficiency of only 50%, its actual gain will be 10 + 10log10(0.5) ≈ 10 – 3 = 7 dBi. That lost 3 dB of power directly turns into heat.

2. Gain Doesn’t Come for Free

• Square Law Relationship Between Gain and Antenna ApertureFor aperture antennas (e.g., parabolic dishes, planar antennas), the maximum gain is approximately equal to G = η * (4πA / λ²), where A is the physical aperture area of the antenna, λ is the wavelength, and η is the aperture efficiency (typically between 50% and 80%). This formula clearly shows that, at the same frequency, gain is proportional to the aperture area. To achieve a gain of 24 dBi (numerical ratio ~251) at 5.8 GHz (wavelength ~5.2 cm), assuming an aperture efficiency of 60%, the required antenna aperture diameter is approximately D = λ/π * √(G/η) ≈ 0.052/3.14 * √(251/0.6) ≈ 0.3 meters. This means that, regardless of technological advances, a 30 cm dish antenna is almost the physical lower limit to achieve this gain.
• Gain vs. Length Trade-off for Log-Periodic AntennasFor traveling wave antennas like the log-periodic, the gain primarily depends on the “effective aperture,” directly related to the antenna’s axial length (L) and the highest operating frequency (f_high). A rule of thumb is that the gain (dBi) is approximately equal to 10 * log10(2 * L / λ_min), where λ_min is the wavelength corresponding to the highest frequency. A shortwave log-periodic antenna covering 2-30 MHz might need a length exceeding 30 meters to achieve 7 dBi gain. For the 2.4 GHz WiFi band, a log-periodic antenna with 8 dBi gain can have its length controlled to around 20-30 centimeters. At a fixed frequency, doubling the length (100% increase) increases the gain by approximately 3 dB.

3. Gain in Actual Links

• Link Budget: An Exercise in Decibel Addition and SubtractionA complete wireless link budget formula is: Received Power (dBm) = Transmit Power (dBm) + Transmit Antenna Gain (dBi) + Receive Antenna Gain (dBi) – Path Loss (dB) – System Losses (Cables, Connectors, etc., dB). Assume a transmit power of 20 dBm (100mW), transmit and receive antenna gains of 10 dBi each, a path length of 1 km at 5.8 GHz (free space path loss ~108 dB), and cable/connector losses of about 3 dB. Then the received power = 20 + 10 + 10 – 108 – 3 = -71 dBm. This value needs to be higher than the receiver’s sensitivity (e.g., -85 dBm) for the system to work stably, giving us a 14 dB margin (link margin).
• Non-linear Impact of Gain Increase on Link PerformanceIncreasing antenna gain from 10 dBi to 13 dBi seems like only a 3 dB increase, but its effect is significant. In the example above, the received power increases from -71 dBm to -68 dBm. According to Shannon’s theorem, the channel capacity C is related to the Signal-to-Noise Ratio (SNR) by C = B * log2(1+SNR). Assuming the original SNR was 20 dB (ratio 100), capacity was C1. After a 3 dB SNR increase to 23 dB (ratio 200), the new capacity C2 ≈ B * log2(201) ≈ B * 7.65. Compared to the original C1 ≈ B * log2(101) ≈ B * 6.66, the actual channel capacity increases by about 15%. This 3 dB gain might directly determine whether the data transmission rate can stably increase from 200 Mbps to 230 Mbps, or whether the link can remain uninterrupted when rain attenuation increases by 5 dB.

Simple Structure, Robust and Reliable

One might think that an antenna capable of covering an ultra-wide band from 300MHz to 3GHz with a stable gain of 8±1dBi must have a very complex internal structure. But the opposite is true: one of the core attractions of the Log-Periodic Antenna (LPA) lies in its extremely simple mechanical design.

It has no precision fragile circuit boards, nor delicate moving parts. Its basic form is an array of metal dipoles arranged according to a specific ratio (typically the scaling factor τ is between 0.8 and 0.95). Imagine using high-strength aluminum alloy tubing (strength up to 400MPa) as the dipoles, fixed to a metal main boom about 40-50mm in diameter using 304 stainless steel clamps – this constitutes 90% of its physical makeup. The main boom itself also serves as the shielding channel for the feedline.

This “building block” style modular design directly leads to a field service life exceeding 10-15 years and an environmental adaptability close to 99.5%, resulting in maintenance costs that are over 30% lower than phased array or parabolic antennas of equivalent performance when facing strong winds, ice, snow, and salt spray erosion.

Core Structure Breakdown

If you disassemble a log-periodic antenna operating in the 698-2700MHz band, you’ll find the number of parts is probably less than 50. This simplicity is the physical basis of its high reliability. Each component follows clear and unambiguous geometric and physical rules, from the longest dipole of about 345mm (low frequency) to the shortest of about 85mm (high frequency). Length tolerances are strictly controlled within ±0.2mm, ensuring the electromagnetic phase center precisely falls on the theoretically designed “vertex,” which is the prerequisite for the pattern not drifting with frequency.

The main boom uses a 6061 aluminum alloy tube with a wall thickness of 2.5mm, tensile strength over 270MPa, yet keeps the overall weight around 3.2 kg. This results in a wind load area of only 0.15 m² at a wind speed of 35 m/s, with a root bending moment below 120 Newton-meters.

Radiator Array: The Precise “Vocal Cords”

• Mathematical Constraints on Element Length and Spacing: This is not a random arrangement but follows strict mathematical formulas. The length Ln of each element and its distance to the vertex Sn are determined by a key scaling factor τ (typically between 0.8 and 0.95). The specific rule is: Ln+1 = τ × Ln and Sn+1 = τ × Sn. For example, if τ=0.9, each subsequent element is 90% the length of the previous one, and the spacing is similarly compressed. This antenna might contain 18 dipole pairs. The longest dipole handles the lowest band (e.g., 698MHz), its length about 345mm (approx. 1/4 wavelength). The shortest handles 2700MHz, length about 85mm. All dimensional machining tolerances must be controlled within ±0.15mm; otherwise, it directly leads to VSWR degradation at high frequencies, potentially worsening from an ideal 1.3:1 to over 1.8:1.
• Materials and Connection Process: The dipoles are typically made of aluminum alloy tubes 8-12mm in diameter, surface-treated with an anodized layer at least 15μm thick to withstand over 500 hours of neutral salt spray testing. Their connection points to the main feed collection line (a copper strip or coaxial cable running through the main boom) are key to mechanical reliability. High-end products use self-locking beryllium copper alloy crimping sleeves that, under an applied pressure of 30 Newtons, crimp the dipole onto the collection line, forming an electrical connection point with contact resistance less than 3 milliohms. This purely physical connection method completely avoids potential issues like cold solder joints inherent in soldering, and its vibration resistance (complying with MIL-STD-810G, frequency 5-500Hz, acceleration 5g) far exceeds that of soldering processes.

The “Main Artery” for Signal Transmission: The Feed System

• Physical Realization of Cross-Feeding: To achieve in-phase excitation of all elements, the signal must be fed in a “crossed” manner. This isn’t simply twisting a wire; inside the antenna, via a 50-ohm characteristic impedance microstrip line or a special coaxial cable, the signal polarity is alternated physically. The precision requirements for this transmission line are extremely high; its dielectric constant tolerance needs to be within ±0.1, and length error less than 0.5mm, to ensure the phase difference of the signal arriving at each element is stable within 180 degrees ±5 degrees.
• Balun: The Invisible “Traffic Cop”: The balun is responsible for converting the unbalanced coaxial cable signal to a balanced dipole signal. In log-periodic antennas, a 1:4 transmission line transformer balun or an exponentially tapered coaxial balun is often used. The size of this component is precisely calculated; its physical length is approximately a quarter wavelength at the center frequency (e.g., 1.7GHz), about 44mm. A high-performance balun can suppress common-mode current below -25dB; unwanted current radiation is greatly suppressed, resulting in a “cleaner” antenna pattern, allowing the front-to-back ratio to easily exceed 20dB.

The “Skeleton” Holding It All Together: Main Boom and Support

• Multiple Roles of the Main Boom: This aluminum alloy tube, 40-50mm in diameter, has an internal channel for the signal. The collection line is precisely fixed along the central axis of the boom, maintaining a constant distance from the tube wall (e.g., 3mm). This distance constitutes a uniform transmission line environment, stabilizing the characteristic impedance at 50 ohms. The boom wall thickness is typically 2-3mm, optimized through Finite Element Analysis (FEA). When lateral wind speed reaches 55m/s, its maximum deformation displacement is controlled to within 1/200 of its length (for a 1.5m long antenna, deformation less than 7.5mm), preventing electrical performance failure due to excessive deformation.
• Reliability Design of the Mounting Interface: The connection flange between the antenna and the mast is typically a 10-15mm thick aluminum plate, fixed by M10 or M12 high-strength stainless steel bolts. The mounting surface is precision milled with a flatness error less than 0.1mm, ensuring no “drooping” after installation, with a pointing accuracy error less than 0.5 degrees. The flange surface usually includes a 1mm thick silicone sealing gasket that, when pressed against the mast, achieves IP67 level protection.

Economic Benefits

The purchase price of a quality LPA might be 2000-5000 RMB, while a multi-band antenna array or a scanning antenna system with motors offering similar performance might have an initial investment of 15,000 to 30,000 RMB.

But this is just the tip of the iceberg. Its true economic value is reflected in the positive cash flow continuously generated over 10-15 years of operation, in terms of maintenance, energy consumption, space, and reliability.

Economic Benefit Dimension	Traditional Solution (Multiple Antennas or Complex Antenna)	Log-Periodic Antenna Solution	Quantified Benefit & Impact
Initial Investment	15,000 – 30,000 RMB (Equipment + Complex Installation)	2,000 – 5,000 RMB (Equipment + Simple Installation)	Direct CAPEX saving over 70%
Annual Maintenance Cost	~2,000 RMB (Inspection, Calibration, Parts Replacement)	Nearly 0 RMB (Maintenance-Free Design)	~20,000 RMB OPEX saving over 10 years
Tower Rent & Space Cost	Occupies multiple mounting positions, annual tower rent may exceed 5,000 RMB	Occupies only 1 mounting position, annual tower rent ~1,000-2,000 RMB	>60% annual space cost saving
System Outage Loss	High risk of unexpected outage, single outage business loss can reach tens of thousands RMB	Availability up to 99.99%, almost no unexpected outages	Avoids incalculable business interruption loss and reputational risk
Installation & Commissioning Man-hours	Requires 2-person team, 4-6 hours, labor cost ~2,000 RMB	Requires 2-person team, 30 minutes, labor cost ~300 RMB	80% improvement in installation efficiency, 85% immediate labor cost saving

Money Saved Directly on the Balance Sheet: CAPEX and OPEX

1. Procurement Cost Settled at Once (CAPEX)

A wideband LPA covering 800MHz to 3.5GHz costs about 3,500 RMB. If you need multiple antennas (e.g., one 900MHz directional antenna, one 1800MHz antenna, one 2.6GHz antenna) to cover the same bands, with an average price of 1,500 RMB per antenna, the total equipment cost reaches 4,500 RMB. This doesn’t include the additional combiner, which might cost 2,000 RMB and introduces extra insertion loss, potentially up to 1.5dB, meaning you need to increase base station transmit power to compensate, raising electricity costs. The LPA solves the problem with one antenna and one feeder cable, directly reducing initial hardware costs by 30% and eliminating the combiner cost and signal loss.

2. Pressing Maintenance Costs to Almost Zero (OPEX)

This is where the big savings are. An LPA with a simple structure, no moving parts, and no filters requiring periodic replacement, can have a Mean Time Between Failures (MTBF) exceeding 200,000 hours (approx. 22.8 years). This means that over its 10-15 year design life, you basically pay no repair costs for the antenna itself.

Compare this to an antenna with electric downtilt adjustment: its motor and transmission mechanism might have a failure rate of 0.5% per year in harsh environments (temperature -40℃~+70℃, humidity 100%). A single site visit for repair, including engineer travel, tower work (comprehensive cost per climb ~8,000 RMB), and part replacement, easily exceeds 10,000 RMB. Over ten years, just one failure means maintenance costs exceed the value of the antenna itself. The LPA fundamentally prevents such failures.

Saving Invisible “Soft Costs”: Space, Time, and Risk

3. Tower Space is Real Money

Communication tower rental fees are calculated based on installation position and weight – think of it as “air rent.” Installing one more antenna might mean paying an extra 500-1,000 RMB per year in tower rent. The LPA uses the physical space of one antenna to achieve the functionality of multiple antennas, directly saving you this fixed “rent” annually. More importantly, on existing sites where tower space is already very crowded, you might not find space to add a new antenna. The wideband characteristic of the LPA reserves space for future expansion (e.g., adding new 5G bands), avoiding the huge investment (200,000-500,000 RMB) in building a new tower due to space constraints.

4. Installation and Commissioning: Speed Saves Money

How fast is installing an LPA? Two engineers, one wrench. From unboxing to tightening, usually no more than 30 minutes. Because it has only one interface: one main mounting clamp connecting one feeder cable. Calibration is simple, roughly aligning the direction suffices due to its relatively wide beamwidth.

In contrast, installing a multi-antenna system requires multiple tower climbs, separate fixing, connecting a complex feed network, and worrying about isolation between antennas. The entire process might take half a day (4-6 hours). Assuming a communication engineer’s on-site rate is 500 RMB/person/hour, the labor cost for installing one LPA is about 2 people * 0.5 hours * 500 RMB/hour = 500 RMB. The cost for a multi-antenna system might be 2 people * 5 hours * 500 RMB/hour = 5,000 RMB. Just the installation step saves 4,500 RMB in one go.

5. Minimizing the Risk of Service Interruption

For operators or critical communication users, the loss from a network outage is far more than the repair cost. A 2-hour base station outage could lead to thousands of user complaints, and penalty fees for enterprise dedicated line service breaches could reach tens of thousands of RMB. Due to its near “maintenance-free” nature, the LPA reduces the probability of network outage caused by the antenna itself to a very low level.
