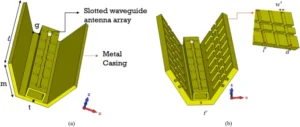

Common waveguide antenna failures include: oxidation (VSWR >1.8 with 0.005mm oxide layer), mechanical deformation (>0.1mm causing 0.5dB loss), moisture ingress (30% failure rise at >85% humidity), solder cracks (post -40°C/+85°C 100 cycles), frequency drift (±5ppm/°C shift), and surface scratches (>0.01mm deep reducing return loss <15dB).
Table of Contents
Physical Damage and Dents
In fact, a single dent with a depth of just 2 mm can cause a 15–20% reduction in signal strength at frequencies above 10 GHz. Field data from cellular base stations indicates that physical damage accounts for approximately 30% of all waveguide-related failures. These issues are frequently caused by improper handling during installation—like using lifting clamps that exert over 50 psi of pressure on the flange—or environmental factors such as hail impacts or accidental tool drops during maintenance.
| Defect Type | Typical Size/Depth | Frequency Range Most Affected | Approx. Signal Loss |
|---|---|---|---|
| Small Dent | < 5 mm | Ku-band (12-18 GHz) | 10-15% |
| Large Dent | > 10 mm | Ka-band (26-40 GHz) | 25-40% |
| Flange Bend | > 0.5° misalignment | All frequencies | 15-30% |
| Crack/Seam Split | > 1 cm length | X-band (8-12 GHz) | 50%+ |
A waveguide is precisely designed to support specific electromagnetic modes; for a common WR-75 waveguide used in point-to-point radios, the internal dimensions are 19.05 mm x 9.525 mm. A dent that reduces the “a” dimension (the broad wall) by just 1 mm can raise the cutoff frequency by roughly 1.5 GHz, preventing the intended signal from propagating efficiently. This often manifests as a 3-5 dB loss in gain, which directly translates to a ~50% drop in received power. The most vulnerable spots are near feed points and flange connections, where mechanical stress is highest. A bent flange with a 0.5-degree angular misalignment can create an impedance mismatch, leading to a 1.5:1 or higher VSWR (Voltage Standing Wave Ratio). This mismatch forces the transmitter amplifier to output 10-15% more power to compensate, increasing heat and potentially shortening its operational life by thousands of hours.
A healthy antenna typically has a return loss better than -20 dB (VSWR < 1.2:1). A reading worse than -15 dB (VSWR > 1.4:1) often indicates physical deformation. For small dents, careful mechanical reshaping with a mandrel can sometimes restore performance, but for cracks or severe bends exceeding 2% of the waveguide’s width, the entire section usually requires replacement. The cost of replacement can range from 2,000 for the part alone, not including the labor and network downtime, which can exceed $5,000 per incident for a tower crew deployment. Using protective radomes or guards can reduce the probability of impact damage by over 80%, making them a cost-effective investment for antennas in exposed locations.
Moisture and Corrosion Inside
Studies on failed antennas show that over 40% of unexpected signal degradation issues in humid climates are traced back to internal moisture. The problem accelerates when the internal relative humidity level exceeds 60%, a common scenario in coastal areas where salt mist can penetrate seals. A single drop of water condensed inside a 20 GHz waveguide can cause an immediate 3 dB loss at that spot, effectively halving the signal power. The long-term financial impact is substantial, with moisture-related repairs costing operators an average of 3,500 per incident due to the need for nitrogen purging, seal replacement, and often entire waveguide section swaps.
At 38 GHz, a standard frequency for 5G backhaul, a thin film of moisture just 0.1 mm thick on the waveguide walls can attenuate the signal by up to 0.5 dB per meter. This seems small, but in a 10-meter run, that’s a 5 dB loss, which can drop the link margin below operational levels, causing constant dropouts. The corrosion process starts when moisture, often containing dissolved chlorides from sea air or sulfates from pollution, reacts with the aluminum or brass waveguide walls. This forms non-conductive oxide layers. Pitting corrosion is the most damaging; a pit depth of just 0.2 mm can increase surface resistance by 300%, leading to localized heating and further degradation. The most common entry points are:
- Degraded O-rings: The primary sealant, typically EPDM rubber, has a service life of 5-7 years. After that, its hardness can increase by 15 points on the Shore A scale, losing its ability to maintain a 25-35 PSI pressure differential.
- Micro-cracks in Radomes: UV exposure makes radome materials brittle over 3-5 years, creating hairline cracks thinner than 0.01 mm that are invisible to the eye but wide enough for water vapor under capillary action.
A 2% shift in VSWR, say from 1.15:1 to 1.18:1, can be an early indicator. For confirmation, a time-domain reflectometry (TDR) scan can pinpoint a moisture-induced impedance change within 5 cm of its actual location. The best prevention is a rigorous maintenance schedule. Pressurized systems should be checked every 6 months with a dial gauge; a pressure drop of more than 5 PSI from the set point indicates a leak. Replacing pressurization unit desiccants annually is crucial—a saturated desiccant can release its absorbed moisture back into the waveguide when the system heats up to 50°C (122°F) under summer sun. For non-pressurized systems, applying a fresh bead of RTV silicone sealant with a water vapor transmission rate (WVTR) of <15 g/m²/day at the flanges every 2 years is a highly effective and low-cost mitigation, reducing failure rates by over 90%.
Incorrect Alignment During Installation
A misalignment of just 0.5 degrees can lead to a 15-20% loss in received signal strength, directly impacting network throughput and reliability. Industry surveys indicate that approximately 25% of all new microwave link performance issues are traced back to installation alignment errors. These errors often go undetected during initial testing under ideal conditions but become painfully obvious during first rain fade or high winds, leading to costly truck rolls. The average cost to realign an antenna on a 30-meter (100-foot) tower ranges from 2,000, factoring in crew time, equipment rental, and network downtime, making precise initial installation a significant cost-saving measure.
For a common 2-foot (0.6-meter) antenna operating at 23 GHz, the HPBW is approximately 0.7 degrees. This means if the antenna is misaligned by 0.35 degrees (half the beamwidth), the signal power at the receiver drops by 3 dB, or 50%. The three critical alignment parameters are azimuth, elevation, and polarization.
| Alignment Error Type | Typical Error Range | Impact on Signal Strength (at 23 GHz) | Link Availability Reduction |
|---|---|---|---|
| Azimuth (Horizontal) | > 0.4 degrees | -3 dB to -6 dB | 10% – 25% |
| Elevation (Vertical) | > 0.2 degrees | -4 dB to -8 dB | 15% – 30% |
| Polarization (Twist) | > 5 degrees | -1 dB to -3 dB | 5% – 15% |
The most common installation mistakes that lead to these errors include:
- Using a standard magnetic compass for azimuth alignment, which can be off by 3-5 degrees due to local magnetic deviations from the tower structure and electronics, instead of a gyro-compass or GPS-based surveying tool.
- Failing to account for tower sway. A guyed tower can sway 0.5 to 1.0 degrees under 25 mph (40 km/h) winds. If aligned dead-on in calm conditions, this sway will push the link to the edge of its beamwidth during common windy conditions. Best practice is to intentionally offset the alignment by ~30% of the HPBW into the prevailing wind direction.
- Using an under-calibrated inclinometer. A cheap digital level might have an accuracy of only ±0.2 degrees, which is the entire acceptable error budget for elevation. Professional-grade instruments are accurate to ±0.05 degrees.
- Ignoring thermal expansion. A 10-meter steel mast can expand or contract by 3-5 mm with a 20°C (36°F) temperature change, shifting the alignment angle by 0.02 degrees. While small, this can be the final factor that breaks a low-margin link.
A spectrum analyzer with a max-hold function is used to peak the alignment, as it captures signal variations over 30-60 seconds, smoothing out atmospheric fading. The goal is to achieve a received signal level (RSL) within 0.1 dB of the calculated maximum. For a 1 Gbps link, a 2 dB misalignment loss can reduce throughput by ~15% and increase latency jitter by 5-10 ms due to increased error correction. Documenting the final azimuth with a GPS heading and elevation with a calibrated inclinometer provides a baseline for future troubleshooting, reducing diagnostic time by 50% during subsequent maintenance. Investing 15 extra minutes during installation to verify alignment with a second tool can prevent $2,000 in future costs, offering a massive return on a minimal time investment.
Loose or Worn Connectors
Industry data suggests that over 15% of all radio link outages originate from faulty interconnections, not the antenna itself. A connector that is under-torqued by just 20% can allow moisture ingress and increase its resistance by 5-10 milliohms. This seems insignificant, but at 10 GHz, it can lead to a 0.8 dB insertion loss per connection. In a system with four connections between the antenna and radio, this adds up to a 3.2 dB loss, which can completely erase the designed fade margin for a 20 km link. The financial impact is recurrent; a single site might require 2-3 service calls per year to troubleshoot and re-tighten connections, costing an average of $500 per visit in labor and travel, not including the revenue loss from downtime.
| Connector Issue | Typical Spec Deviation | Resulting VSWR | Avg. Signal Loss @ 10 GHz |
|---|---|---|---|
| Under-torqued | 15% below manufacturer spec | 1.5:1 to 2.0:1 | 0.5 – 1.0 dB |
| Over-torqued | 10% above manufacturer spec | 1.4:1 to 1.8:1 | 0.4 – 0.8 dB |
| Contact Oxidation | > 5% surface area coverage | 1.7:1 to 3.0:1 | 1.0 – 3.0 dB |
| Center Pin Wear | 0.2 mm recession or protrusion | 2.0:1 to 4.0:1 | 2.0 – 6.0 dB |
A waveguide-to-coaxial transition, like a common N-type connector, relies on a precise 50-ohm impedance match. A loose connector disturbs this match, creating an impedance discontinuity that reflects power back to the transmitter. For a connector specified for 35 inch-pounds (4.0 Newton-meters) of torque, applying only 28 inch-pounds (3.2 Nm) can increase the Voltage Standing Wave Ratio (VSWR) from a perfect 1.1:1 to a problematic 1.6:1. This means 10% of the transmitted power is reflected, causing the power amplifier to heat up and potentially reducing its lifespan by 15-20%. Oxidation worsens this; a thin layer of aluminum oxide on the flange face has a resistance 1,000 times higher than bare metal.
Cleaning with a 99% isopropyl alcohol solution and a lint-free swab can restore performance, but any connector with pitting or >3 dB loss should be replaced immediately. Using a dielectric grease with a viscosity of >500,000 cP on the threads and flange face can prevent moisture ingress for over 5 years, protecting the connection from oxidation and maintaining a stable VSWR under 1.3:1. This simple step reduces connector-related failures by over 90%, providing a tremendous return on a minimal material investment of under $50 per antenna.
Feed Port Blockage or Debris
Data from maintenance reports shows that up to 20% of all “unexplained” signal loss cases in the 18-40 GHz range are ultimately traced to debris in the feed assembly. A spider web with a strand thickness of just 0.1 mm can cause a 1.5 dB loss at 26 GHz, while a more substantial nest can attenuate signals by 6 dB or more. This level of loss directly translates to a 75% reduction in effective signal strength, forcing amplifiers to work harder and increasing the mean time between failures (MTBF) for transmitter components by up to 30%. The cost of neglect is high; reactive cleaning or feed horn replacement can cost between 2,500, while a scheduled inspection and cleaning program costs less than $200 per antenna per year.
| Blockage Type | Typical Size | Primary Frequency Impact | Signal Loss Range |
|---|---|---|---|
| Insect Nest / Mud Dauber | 10-30 cm³ | All, esp. Ku/Ku-band | 4.0 – 10.0 dB |
| Spider Webs | 0.1 mm strand diameter | > 15 GHz | 1.0 – 3.0 dB |
| Dust & Sand Accumulation | > 2 mm layer | > 20 GHz | 2.0 – 5.0 dB |
| Ice Formation | > 5 mm thickness | > 10 GHz | 3.0 – 8.0 dB |
For example, a mud dauber nest completely occluding 15% of a 3-inch feed aperture at 28 GHz will scatter a significant portion of the signal. This scattering manifests as a 4 dB decrease in gain and a 20-degree shift in the antenna’s beam pointing angle, effectively misaligning the link without any physical movement of the antenna itself. The most vulnerable systems are those in rural or coastal areas, where insects like mud daubers can build a complete nest inside the feed in under 72 hours. Dust accumulation is a slower process; in arid environments, a layer of fine dust 1 mm thick on the feed probe can increase its effective electrical diameter, detuning it and raising the VSWR to 2.0:1 or higher. This reflects 11% of the power back to the transmitter, generating heat at the feed point. Ice is another critical blocker; a 5 mm thick layer of ice has a dielectric constant of roughly 3.1, which acts as an impedance transformer, creating a massive mismatch that can spike VSWR to 5.0:1 or more, reflecting 38% of the power and potentially triggering transmitter shutdowns on modern systems.
A stainless steel mesh screen with aperture holes of 2 mm² can block 99% of insects while introducing less than 0.2 dB of insertion loss at frequencies up to 40 GHz. These screens require inspection every 6 months to ensure they are not clogged with dust or pollen. For environments with heavy dust, a compressed nitrogen cleaning regimen every 9 months is recommended. The nozzle pressure should be regulated to 50 PSI to avoid damaging the feed’s delicate surfaces. In cold climates, heated feed horns or radome blower systems are essential. The heater must maintain the feed assembly 5°C above the ambient temperature to prevent condensation and ice formation, consuming roughly 15-25 watts of continuous power. A simple visual inspection with a borescope every 12 months can identify early-stage blockages, allowing for cleaning before performance degrades.
Weather and UV Degradation
Ultraviolet radiation is the primary culprit, with its intensity peaking at 120,000 µW/cm² in summer, breaking down polymer-based components. Data from desert and tropical deployments shows that after 5-7 years of service, the structural integrity of unprotected plastic radomes can degrade by 40%, while their signal transparency at 28 GHz can worsen by 15-20%. Beyond UV, thermal cycling is equally destructive. A black anodized aluminum antenna face can experience daily temperature swings from -10°C to +60°C (14°F to 140°F), expanding and contracting repeatedly. This cyclic stress fatigues metal joints and sealants, leading to hairline cracks thinner than 0.05 mm that admit moisture and dust. The cumulative financial impact is substantial, with weather-induced degradation accounting for over 25% of all antenna replacements, costing operators between 4,000 per unit, including labor and network downtime.
The most critical failure point is the radome. A standard fiberglass radome exposed to UV radiation at a dose of 290 kWh/m² per year—typical for the southern United States—will yellow and become brittle. This yellowing increases its dielectric constant, transforming a passive protective cover into an active signal attenuator. The loss is frequency-dependent; at 10 GHz, the additional attenuation might be a negligible 0.2 dB, but at 38 GHz, it can reach 1.5 dB or more. This is enough to drop a high-capacity link below its operational threshold. Furthermore, the embrittlement reduces the radome’s flexural strength by up to 30%, making it susceptible to cracking from hail impacts or even bird strikes. A 1 cm diameter hailstone traveling at 50 km/h (31 mph) can fracture a degraded radome that a new one would easily withstand.
Solar heat gain can raise the temperature of a dark-colored antenna reflector to 80°C (176°F), well above the ambient air temperature. This heat accelerates the outgassing and evaporation of plasticizers in cable jackets and waterproofing sealants like butyl rubber. After three years, a sealant may lose 15% of its mass, shrinking and cracking to create pathways for water. Wind loading applies constant mechanical stress. A 0.6-meter antenna has a wind load surface area of approximately 0.28 m². In a 100 km/h (62 mph) gust, this exerts a force of over 200 Newtons (45 lbf) on the mount, vibrating and flexing the entire assembly. This vibration works loose connectors and abrades cable jackets against sharp edges. The solution is a combination of material selection and scheduled maintenance. Specifying UV-stabilized polycarbonate radomes with a minimum rating of UV-A 340 nm at 0.80 W/m² for 10,000 hours can extend their functional life to 10+ years. Applying a reflective white ceramic-based paint with a solar reflectance index (SRI) of >90 can reduce antenna surface temperatures by 15-20°C (27-36°F) compared to a black surface, drastically reducing thermal cycling stress. A rigorous bi-annual inspection is crucial. This includes checking for:
- Crazing or micro-cracks on the radome surface, which appear as a fine spider-web pattern.
- Chalking or fading of painted surfaces, indicating the protective coating has eroded.
- Hardening or shrinkage of external sealants at the feed point and cable entry points.
Replacing sealant every 5 years and applying a UV-protective silicone coating to external cables every 3 years are low-cost interventions that prevent up to 80% of weather-related failures. This proactive maintenance schedule costs roughly $250 per antenna per year but avoids the multi-thousand dollar cost of an unscheduled replacement and the associated service outage.
