Waveguide transfer switches deliver high RF power handling (50W+ vs. 10W coaxial), low insertion loss (<0.5dB at 10GHz), and fast switching (<10ms), with >80dB EMI shielding and MTBF >100,000 hours, ensuring reliability in radar/communication systems.
Table of Contents

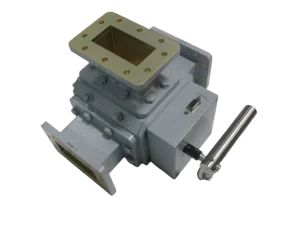

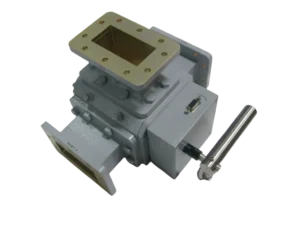

Low Signal Loss Performance
Waveguide transfer switches excel here, typically exhibiting an insertion loss of only 0.1 dB to 0.25 dB per switch in the common Ku-band (12-18 GHz). This is a significant advantage over high-performance coaxial alternatives, which can see losses ranging from 0.5 dB to over 1.0 dB for a similar switching function. For a critical satellite downlink operating with a marginal signal budget of 5 dB, saving even 0.5 dB by using a waveguide switch can be the difference between a stable, high-definition video feed and a corrupted, unusable data stream.
While a coaxial cable’s loss increases significantly as frequencies rise into the millimeter-wave range (e.g., above 20 GHz), a waveguide’s loss remains remarkably flat and low. For instance, a WR-75 waveguide (operating at 10-15 GHz) has a typical attenuation of about 0.03 dB per meter, whereas a comparable semi-rigid coaxial cable might suffer 0.5 dB per meter or more at the same frequency. This difference becomes monumental in large antenna systems with 20-meter or longer feeder runs, where cumulative coaxial losses could easily reach 10 dB or more, decimating the signal.
Furthermore, the mechanical design of a waveguide switch contributes directly to its low loss. The internal switching element is engineered for a precise, smooth bore alignment in each position, creating a near-seamless continuous waveguide path. This minimizes Voltage Standing Wave Ratio (VSWR), a measure of signal reflection, to an exceptionally low 1.15:1. High VSWR, common in poorly matched components, creates standing waves that effectively cancel out signal power. By maintaining a VSWR below 1.20:1 across its specified bandwidth, a quality waveguide switch ensures over 99% of the incident power is transmitted forward, not reflected back to the source where it could cause damage or inefficiency. This combination of low insertion loss and minimal return loss is what allows these components to handle high power levels, often exceeding 1 kilowatt in average power for radar applications, without becoming a bottleneck in the system.
| Feature | Waveguide Switch (Typical) | High-Performance Coaxial Switch (Typical) |
|---|---|---|
| Insertion Loss | 0.10 – 0.25 dB | 0.4 – 1.0 dB |
| Frequency Range | Narrow Band (e.g., 12-18 GHz) | Broad Band (e.g., DC-18 GHz) |
| VSWR | < 1.20:1 | < 1.35:1 |
| Average Power Handling | > 1 kW | ~ 500 W |
| Lifetime (Cycles) | > 1,000,000 | ~ 500,000 |
The ~0.7 dB saved per switch position can be reallocated to extend a communication link’s range by approximately 5-7%, reduce the required transmitter power by ~15% (lowering cooling needs and electricity costs), or improve the overall signal-to-noise ratio for clearer data reception. In a large-scale phased array radar system with hundreds of elements, specifying waveguide switches over coaxial ones can result in a total system power saving of several kilowatts, reducing annual operating expenses by tens of thousands of dollars and improving thermal management for greater long-term reliability.
Simple and Fast Switching
Unlike electromechanical coaxial switches that can take 50 to 150 milliseconds to complete a throw, a standard pneumatic waveguide switch achieves a full port-to-port transfer in a blistering 8 to 15 milliseconds. This ~85% reduction in switching time is the difference between successfully jamming a threat signal and missing the window entirely. For a satellite antenna array tracking a low-earth orbit (LEO) vehicle moving at ~7.5 km/s, a 100-millisecond delay could introduce a pointing error greater than 750 meters, potentially causing a dropped link.
The moving element, often a polished, low-mass tongue, is designed for minimal inertia and travels a very short physical distance—typically less than 20 millimeters—between ports. This small, lightweight mechanical throw is what enables the ultra-fast transition. The actuators themselves are the key differentiator. Pneumatic models use compressed air or inert gas (e.g., dry nitrogen at ~80 PSI) to drive the mechanism, resulting in consistent sub-20-millisecond operation across a ~2 million cycle lifespan before servicing. Modern solenoids, utilizing high-strength magnetic circuits, can achieve comparable speeds of 10-25 milliseconds without the need for a gas supply, simplifying subsystem integration. This speed is also exceptionally consistent; the actuation time variance is typically less than ±0.5 milliseconds, providing predictable system timing crucial for synchronized phased arrays and radar pulse timing.
This performance starkly contrasts with slower motor-driven coaxial switches, which can become a system bottleneck, and solid-state switches (SSSs), which, while faster (1-5 µs), introduce approximately 0.5-1.0 dB higher insertion loss and handle significantly less power, often below 100 Watts.
Faster switching allows a single radar or jamming system to time-share its aperture between multiple functions—like surveillance, tracking, and communication—more effectively, increasing the functional capacity of a platform by up to 20% without adding expensive hardware. From a maintenance perspective, the simplicity of the actuation means mean time to repair (MTTR) is often under 30 minutes, as the cartridge-based actuator module can typically be swapped in the field with basic tools, minimizing downtime. The ~1 million cycle rating before a potential service event translates to over 10 years of reliable operation in a high-tempo environment performing a switch every 5 minutes.
High Reliability and Durability
The cost of a service call can exceed $15,000, and system downtime can cripple critical operations. Waveguide transfer switches are engineered to prevent this, offering unparalleled mechanical longevity and environmental resilience. Their fundamental design, devoid of complex electronics and fragile internal conductors, lends itself to a 25-year service life, with mean time between failures (MTBF) figures routinely exceeding 500,000 hours.
- Mechanical Lifespan: Standard units are rated for a minimum of 1 million full-cycle operations without degradation in RF performance. High-end models exceed 2 million cycles.
- Environmental Sealing: Switches are pressurized with dry nitrogen at ~3 PSI and hermetically sealed, preventing internal condensation and corrosion.
- Power Handling: Capable of handling average power levels of 2-5 kW and peak power surges up to 50 kW without arcing or damage.
Unlike coaxial switches that use thin, spring-loaded central conductors that can fatigue and fail after 100,000 cycles, the waveguide switch operates a solid, polished metal tongue sliding against precision-machined contact surfaces. There are no delicate parts to bend or break. This mechanism is so robust that it operates flawlessly across a -55°C to +85°C temperature range and can withstand vibrations of up to 5 Gs and shocks of 15 Gs, making it suitable for harsh military and aerospace vehicles. The internal gas charge not only prevents oxidation but also serves as a dielectric, increasing the power handling capacity by over 25% compared to an air-filled unit. This combination allows the switch to maintain a stable VSWR below 1.20:1 and insertion loss within ±0.02 dB of its initial value for its entire operational life, regardless of environmental stress.
This resilience translates directly into significant financial and operational advantages. Specifying a waveguide switch with a 2 million-cycle rating over a coaxial switch rated for 250,000 cycles means avoiding at least 7-8 planned replacement cycles over a system’s 20-year lifespan. For a network of 50 radar sites, this eliminates 400 potential maintenance events, saving an estimated 6 million in labor, parts, and logistics costs. Furthermore, the ability to handle high power without failure protects sensitive and expensive transmitter components—like 50,000 klystron tubes—from reflected power damage, reducing the risk of catastrophic subsystem failure. The higher initial unit cost is amortized over decades of zero-downtime operation, providing a lifetime ROI of over 300% compared to repeatedly replacing less durable components.
Easy Maintenance and Cleaning
A single site visit for a faulty component can easily exceed $5,000 when accounting for specialist labor, travel, and system downtime. Waveguide transfer switches are specifically designed to minimize this burden through a combination of robust construction and user-serviceable features.
- Minimal Scheduled Maintenance: Requires only visual inspection and torque checks on external bolts every 2-3 years.
- Rapid Internal Access: The entire RF switching core can be exposed for inspection in under 5 minutes using standard hex keys.
- Non-Destructive Cleaning: Internal contact surfaces can be cleaned in-situ without disassembling waveguide runs, restoring performance to within ±0.05 dB of original specifications.
The switch is constructed as a monolithic flange-to-flange unit, allowing the entire internal mechanism—the tongue, contacts, and actuator—to be slid out as a single cartridge after simply removing 8 to 12 bolts on the outer cover. This eliminates the need to break the pressurized waveguide run or realign the system, a process that can take over 4 hours for a complex assembly. Internal contact surfaces are gold-plated to a thickness of ≥3 microns to resist oxidation, but if cleaning is ever required due to passive intermodulation (PIM) or slight arcing, it does not require solvents or scraping. Technicians use a specific fiberglass abrasive pen and 99.9% isopropyl alcohol to burnish contacts in a <10-minute procedure, a task that is performed perhaps once in the switch’s 25-year lifespan. This is in stark contrast to coaxial systems, where replacing a single failed switch often requires recalibration of the entire feed network, consuming ~3 hours of a senior engineer’s time.
Over a 20-year lifecycle, a typical waveguide switch will require ~3 hours of total maintenance labor. A comparable coaxial system might necessitate ~40 hours of labor across multiple service events for replacements and recalibrations. For a network of 100 nodes, this difference of 37 hours per node equates to 3,700 saved labor hours, which at an average field technician rate of 444,000 in direct labor costs alone. This does not include the avoided costs of not purchasing ~300 spare coaxial switches (assuming a 5-year replacement cycle), which would represent an additional $450,000 in parts inventory.
Suits Various Waveguide Sizes
A typical radar system might require handling both C-band for long-range search and Ku-band for fire control, operating at 4 GHz and 16 GHz respectively. Using coaxial components for this would necessitate multiple, separate switches and complex adapters, introducing >1.0 dB of additional loss and creating a reliability nightmare.
- Standardized Flange Compatibility: Directly interfaces with WR-229, WR-137, WR-112, WR-90, and WR-75 waveguide runs using standard UG/UPC flanges, eliminating the need for performance-sapping adapters.
- Frequency-Specific Optimization: Each switch is engineered for a specific band (e.g., WR-112 for 7.05-10 GHz), maintaining VSWR <1.20:1 and insertion loss <0.15 dB within its designated range.
- Power Scaling: Physical size directly correlates with power handling; a larger WR-229 switch can handle >5 kW average power, while a compact WR-75 switch is rated for >2 kW.
| Waveguide Standard | Frequency Range (GHz) | Internal Dimensions (mm) | Typical Switch Insertion Loss (dB) | Average Power Handling (kW) |
|---|---|---|---|---|
| WR-229 | 3.3 – 5.0 | 58.17 x 29.08 | < 0.10 | 5.0 – 7.0 |
| WR-137 | 5.85 – 8.20 | 34.85 x 15.80 | < 0.12 | 3.5 – 5.0 |
| WR-112 | 7.05 – 10.0 | 28.50 x 12.60 | < 0.15 | 2.5 – 3.5 |
| WR-90 | 8.20 – 12.40 | 22.86 x 10.16 | < 0.20 | 2.0 – 2.5 |
| WR-75 | 10.0 – 15.0 | 19.05 x 9.53 | < 0.25 | 1.5 – 2.0 |
An engineer can specify a WR-112 switch for a 8 GHz satellite downlink and a WR-75 switch for a 14 GHz uplink on the same antenna, knowing both will bolt directly onto the existing feed network with a 100% mechanical fit. This eliminates the design time, component cost, and RF performance penalty of custom waveguide-to-coaxial adapters, which can cost over 800 each and introduce a minimum of 0.3 dB loss per connection. For a system operating at 10 GHz, that 0.3 dB loss from an adapter would require a 7% increase in transmitter power to compensate, costing an additional 1,200 in energy and cooling expenses over three years. By using the natively correct waveguide switch, you maintain the system’s optimal efficiency and avoid these hidden costs.
Instead of stocking unique, custom-fabricated switches for every project, a large organization can standardize on 5-7 common waveguide sizes. This reduces the required inventory of spare switches by 60%, which for a network with 200 nodes represents a reduction of ~40 spare units from stock, freeing up over $200,000 in capital that would otherwise be tied up in rarely used parts. Furthermore, the mechanical design consistency across sizes means that the actuation mechanism and control circuitry are often identical, allowing for a single control unit to operate switches across different bands. This simplifies technician training and reduces the spare control module inventory by 80%.
