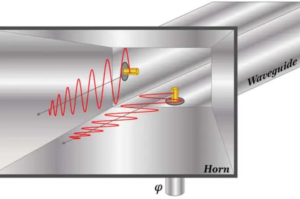

The right waveguide gasket depends on its job: pressure sealing, electrical contact or both. Match the compound and cross-section to the flange drawing, temperature and fluid exposure. MIL-DTL-83528 addresses conductive shielding elastomers; MIL-DTL-24211 addresses waveguide pressure seals. Neither a material name nor a shielding value alone establishes assembled insertion loss in dB.

What must a waveguide gasket actually seal?
Define the pressure boundary and RF current path separately before choosing a material. A seal that keeps dry gas inside a waveguide is not automatically an effective conductive gasket, and an EMI gasket is not automatically a qualified pressure seal.
A nonconductive O-ring can serve the pressure-sealing function where the flange design provides the required RF connection elsewhere. A conductive elastomer combines a polymer binder with conductive filler, but its installed behavior still depends on compression, mating surfaces and geometry.
MIL-DTL-24211 covers pressure-sealing gaskets for specified general-purpose cover and flat-face waveguide flanges. Use the applicable detail sheet and part number to establish fit rather than selecting by outside dimensions alone.[1]
What materials are available for conductive waveguide gaskets?
Conductive silicone and fluorosilicone compounds offer different filler systems and environmental properties; specify the exact compound rather than ordering generic “conductive rubber.”
The following examples come from the material classifications in MIL-DTL-83528J. These values characterize standard-defined materials; they do not rate an assembled flange. The dB values describe plane-wave shielding at 10 GHz, not transmission loss through a waveguide joint.[2]
| Type | Compound | Continuous-use temperature | Shielding at 10 GHz |
|---|---|---|---|
| A | Silver-plated copper in silicone | −55 to +125 °C | 110 dB |
| B | Silver-plated aluminum in silicone | −55 to +160 °C | 100 dB |
| C | Silver-plated copper in fluorosilicone | −55 to +125 °C | 110 dB |
| D | Silver-plated aluminum in fluorosilicone | −55 to +160 °C | 90 dB |
The specification identifies solvent and jet-fuel resistance for Types C and D. Check compatibility with the actual service fluid, cleaner and exposure duration; “fluorosilicone” does not mean resistance to every chemical. Fluorosilicone and FKM fluoroelastomer are distinct material families and should not be treated as interchangeable.
For an unfilled pressure seal, request the compound specification, hardness, compression-set data and environmental limits. For a metal seal, confirm that the flange was designed for its deformation and contact load. Neither an arbitrary metal foil nor a thicker rubber sheet is a safe substitute for the specified gasket.
How do thickness and compression affect the joint?
Use the gasket thickness and compressed height specified for the mating flange; additional thickness can alter flange separation or interfere with the intended contact surfaces.
Compression can be expressed as (free thickness − installed thickness) / free thickness × 100%. For example, compressing a 1.00 mm gasket to 0.80 mm gives 20% compression. This is a calculation only, not a recommended compression percentage or thickness for every waveguide.
| Drawing or assembly check | What to verify | Problem it prevents |
|---|---|---|
| Aperture and inner edge | Correct opening and clearance after compression | Material protruding into the RF path |
| Groove and cross-section | Width, depth, corner radii and specified seal profile | Pinching, extrusion or incomplete compression |
| Flange faces | Cleanliness, damage, flatness and finish to drawing | Uneven contact or a leak path |
| Fasteners | Specified hardware, tightening sequence and torque | Distortion or inconsistent clamping |
There is no single tightening torque for all WR90 joints: screw size, flange material, lubrication and gasket design change the assembly requirement. Use the approved procedure. A waveguide flange shim controls specified spacing and is not interchangeable with a compliant seal.
How should pressure sealing and RF performance be tested?
Verify leakage and RF performance with separate acceptance tests because passing one does not establish the other.
- For leakage, define gas, pressure differential, temperature, dwell time, measurement method, units and allowable rate. State whether a pressure value is gauge or absolute.
- For RF testing, record the operating band, calibration reference planes, installed gasket and mating flanges. Measure return loss and insertion loss across the required band.
- For repeated assembly, define the number of reconnections and whether each cycle uses a new seal. Compare results under the same test conditions.
- For environmental exposure, specify the actual thermal or humidity sequence and the post-exposure acceptance limits. Do not infer qualification from a generic material rating.
If the pressure boundary crosses the waveguide aperture, assess the complete waveguide pressure window and its interfaces. A perimeter gasket cannot replace the dielectric barrier of a pressure-window assembly.
What changes for vacuum service and maintenance?
Vacuum service requires material-specific outgassing evidence as well as a verified seal design; maintenance requires an approved replacement criterion rather than a universal operating-hour interval.
NASA’s outgassing database reports ASTM E595 measurements of total mass loss and collected volatile condensable materials. Match a database entry to the actual formulation and preparation, then apply the project’s acceptance requirements. A low-outgassing result does not establish RF loss or leak performance.[3]
Inspect removed seals for cuts, permanent flattening, hardening, swelling, loose filler and contamination. Replace a damaged seal and investigate the mating surfaces before refitting. Follow the manufacturer’s reuse restrictions, especially for seals that rely on permanent deformation.
What should engineers confirm before ordering a gasket?
Confirm the flange drawing, seal function, compound, compressed geometry and acceptance tests before comparing prices.
Table of Contents
Does a 110 dB shielding rating mean low insertion loss?
No. Shielding effectiveness measures suppression under a defined test arrangement. Insertion loss measures transmission through the assembled RF path. Ask for the joint’s measured transmission and reflection data at the required frequencies rather than converting one rating into the other.
Can I replace silicone with fluorosilicone without changing the drawing?
Only after checking the specified formulation, hardness, compression behavior and service-fluid compatibility. Identical outline dimensions do not prove interchangeability. Obtain approval for the substitution and repeat the relevant sealing and RF acceptance checks on the assembled joint before release.
Should every waveguide flange have a gasket?
No. The mating interface determines whether a seal is required and where it belongs. Some connections rely on direct metal contact without a pressure seal. Adding a gasket to an unspecified location can change the joint geometry and RF performance.
What information makes a gasket RFQ usable?
Provide both mating-flange drawings, waveguide size, operating band, seal function, pressure differential, temperature, fluids and required quantity. Include the existing seal part number, material specification and acceptance method when available. Identify missing information rather than substituting an assumed generic material.
Send the mating-flange drawing and sealing conditions. Include the groove dimensions, RF band and required leakage test so the joint can be reviewed as an assembly.
