HOME » [WRD-650 Double Ridge Waveguide Magic Tees & Hybrids], 6.5 GHz to 18 GHz Frequency Band, 3.1±0.5 dB Distribution Ratio, ≥30dB H/E Arms Isolation.

[WRD-650 Double Ridge Waveguide Magic Tees & Hybrids], 6.5 GHz to 18 GHz Frequency Band, 3.1±0.5 dB Distribution Ratio, ≥30dB H/E Arms Isolation.

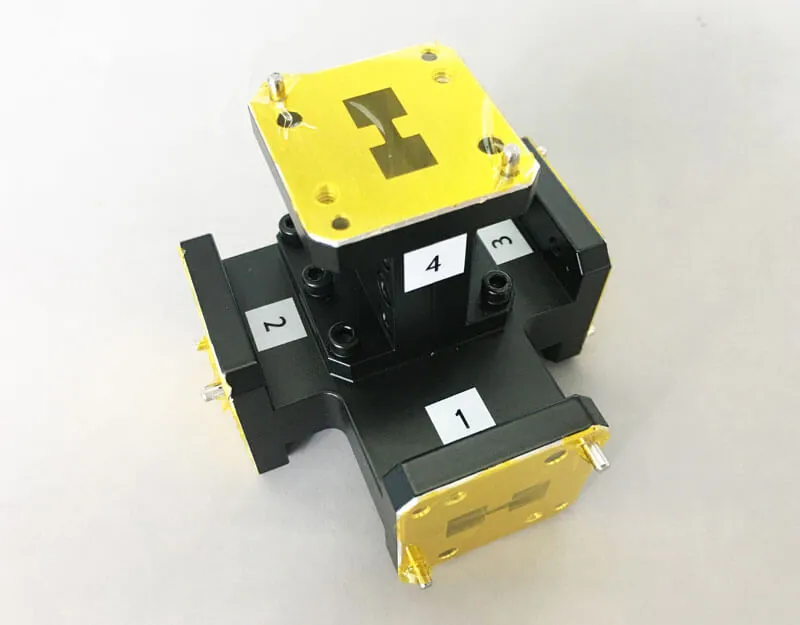

Dolph Microwave has developed a line of four port double ridge waveguide magic tees & hybrids power combiners and dividers covering waveguide sizes WRD-200 to WRD-700. These Magic Tees & Hybrids can vectorially add, subtract or divide two signals. E-plane to H-plane Isolation is a function of the symmetry which is carefully balanced on each unit. If the E-plane port 4 or the H-plane port 2 are used as inputs the split is on the output collinear ports 1 and 3.

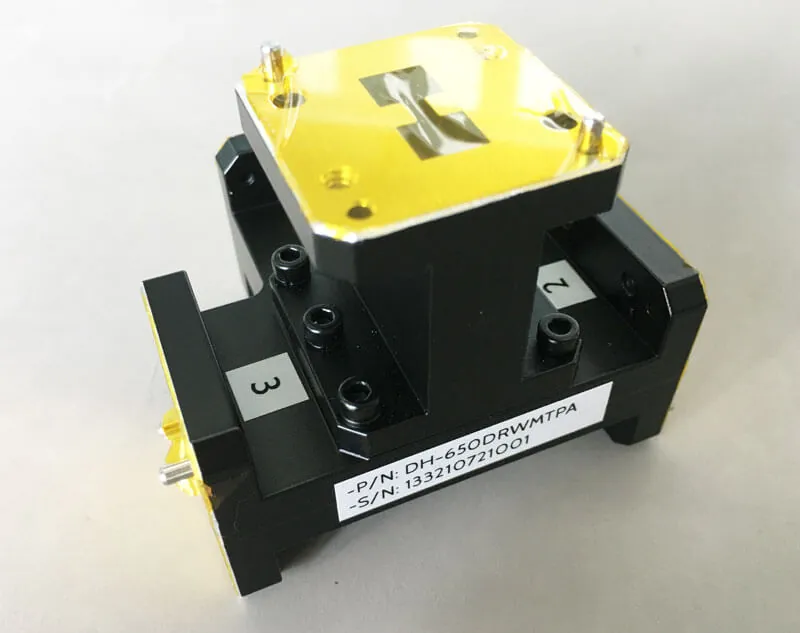

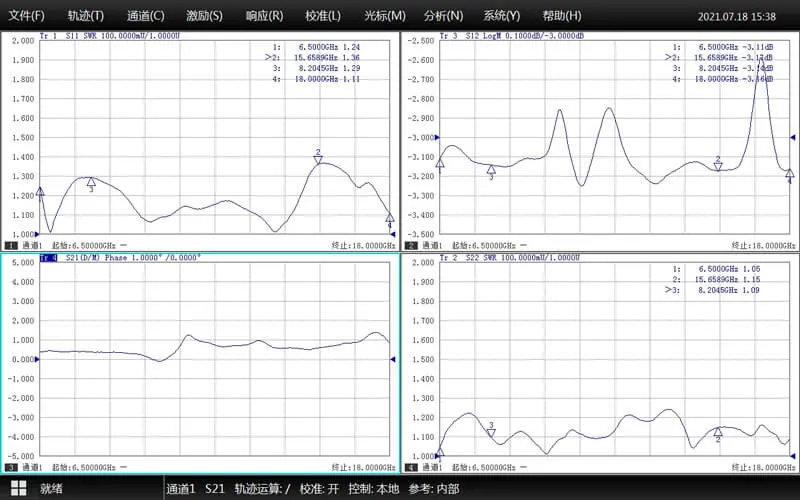

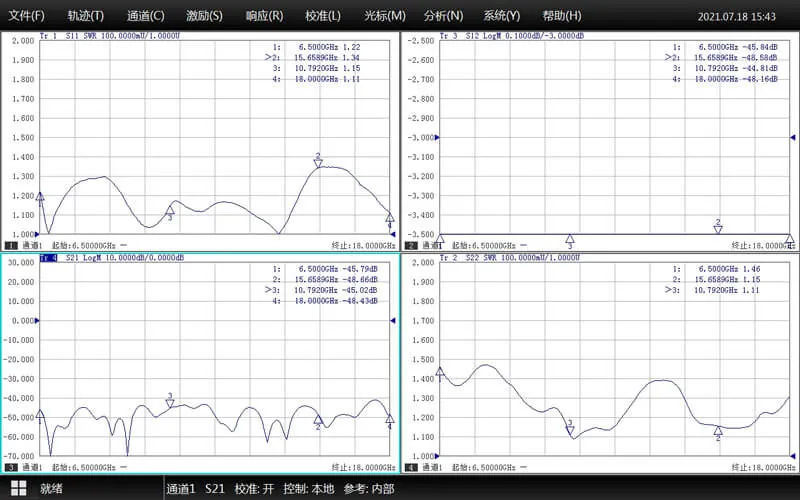

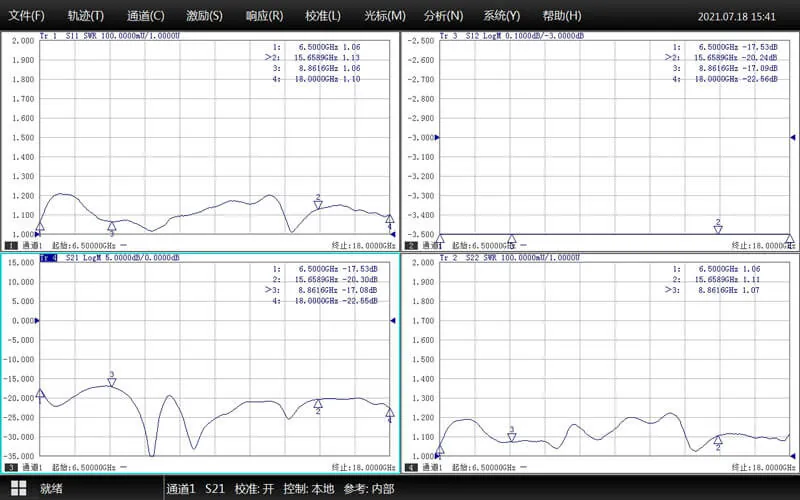

WRD-650 Double Ridge Waveguide Magic Tees & Hybrids

For low and medium-power cases not requiring out-of-phase splitting or combining, It has the E or difference port internally terminated leaving only three accessible, well-matched ports.
