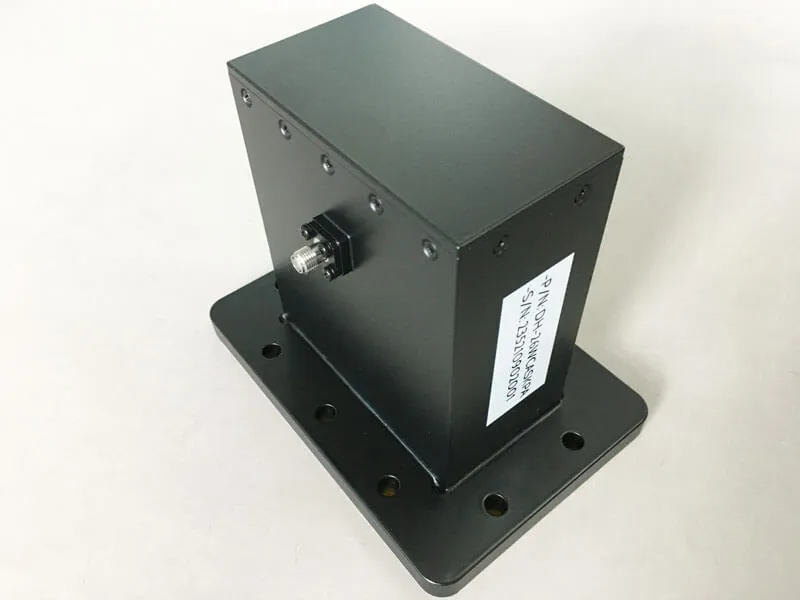

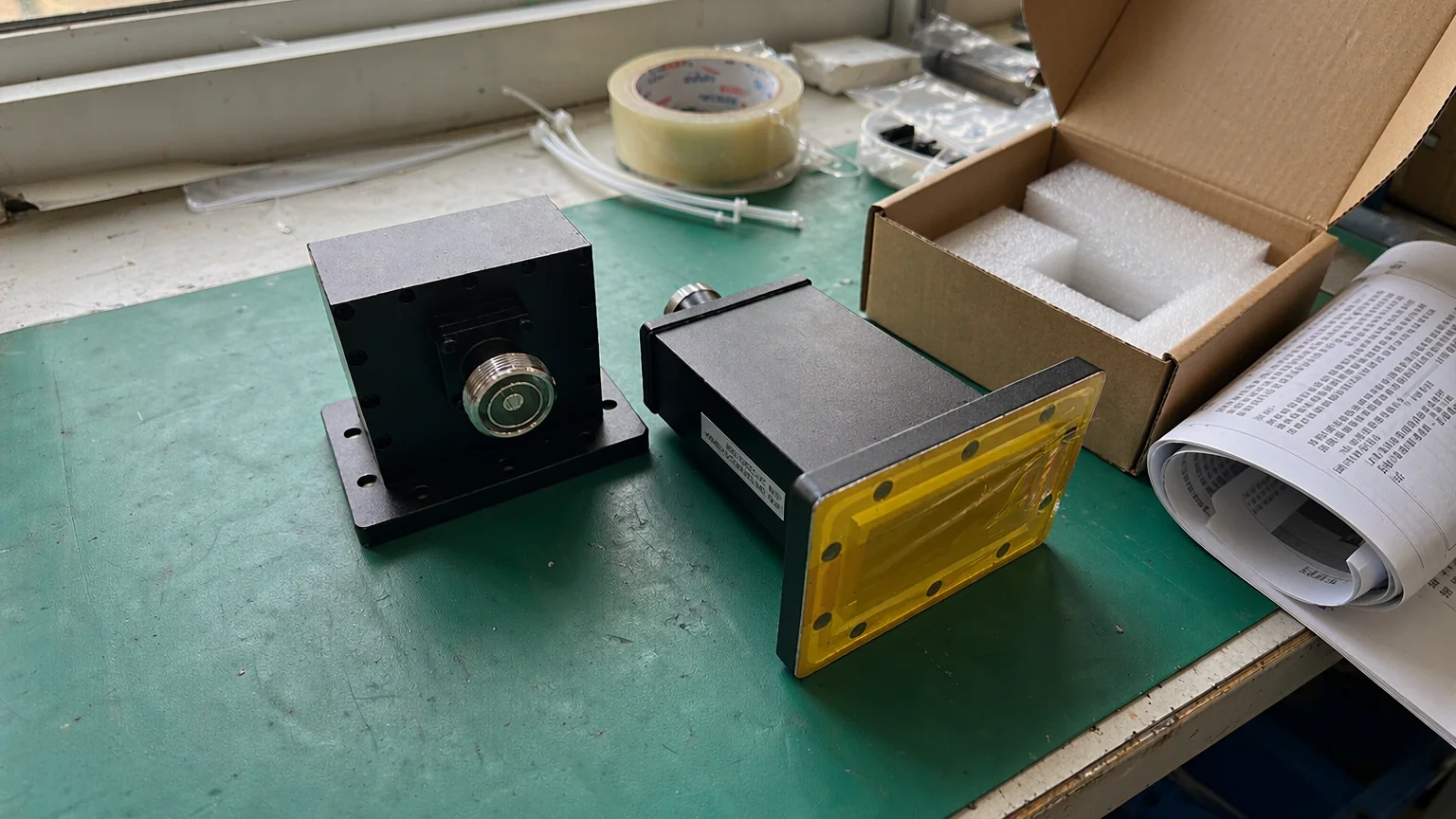

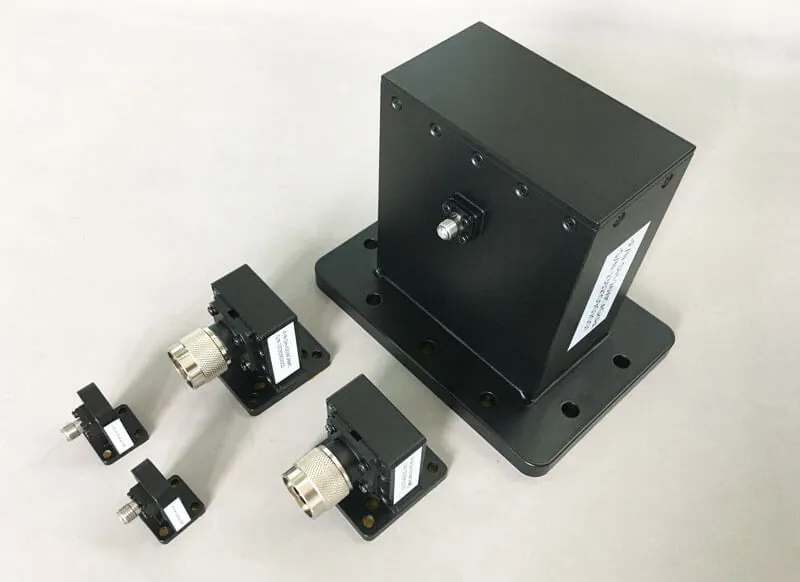

[WR-340 Waveguide to Coaxial Adapters] WR-340 to SMA Female Waveguide to Coax Adapter UDR Cover Standard with 2.17 GHz to 3.3 GHz S Band in Aluminum

Dolph Microwave waveguide to coaxial adapter (also known as a waveguide coaxial transition) is manufactured with a right angle design. Right angle waveguide to coaxial adapter / transition has a waveguide size of WR-340 and UDR cover flange. This WR-340 waveguide to coax adapter / transition is constructed with a SMA coaxial connector that is 50 Ohm and female gender.

• Model: DH-26WECASKPA / DH-26WCASKPA
• Frequency Range: 2.17-3.3 GHz
• VSWR: ≤1.25:1
• AVG Power: 100 W
• Waveguide Type: WR340
• Flange type: FDP26 (Cover) /FDM26 (Grooved)
• Connector Type: N, BNC, TNC, SMA, Female/Male
• Material: Al
• Inside finish: Chromate Conversion
• Outside finish: Anticorrosion Grey Paint
• Size: 85*138*95 mm
