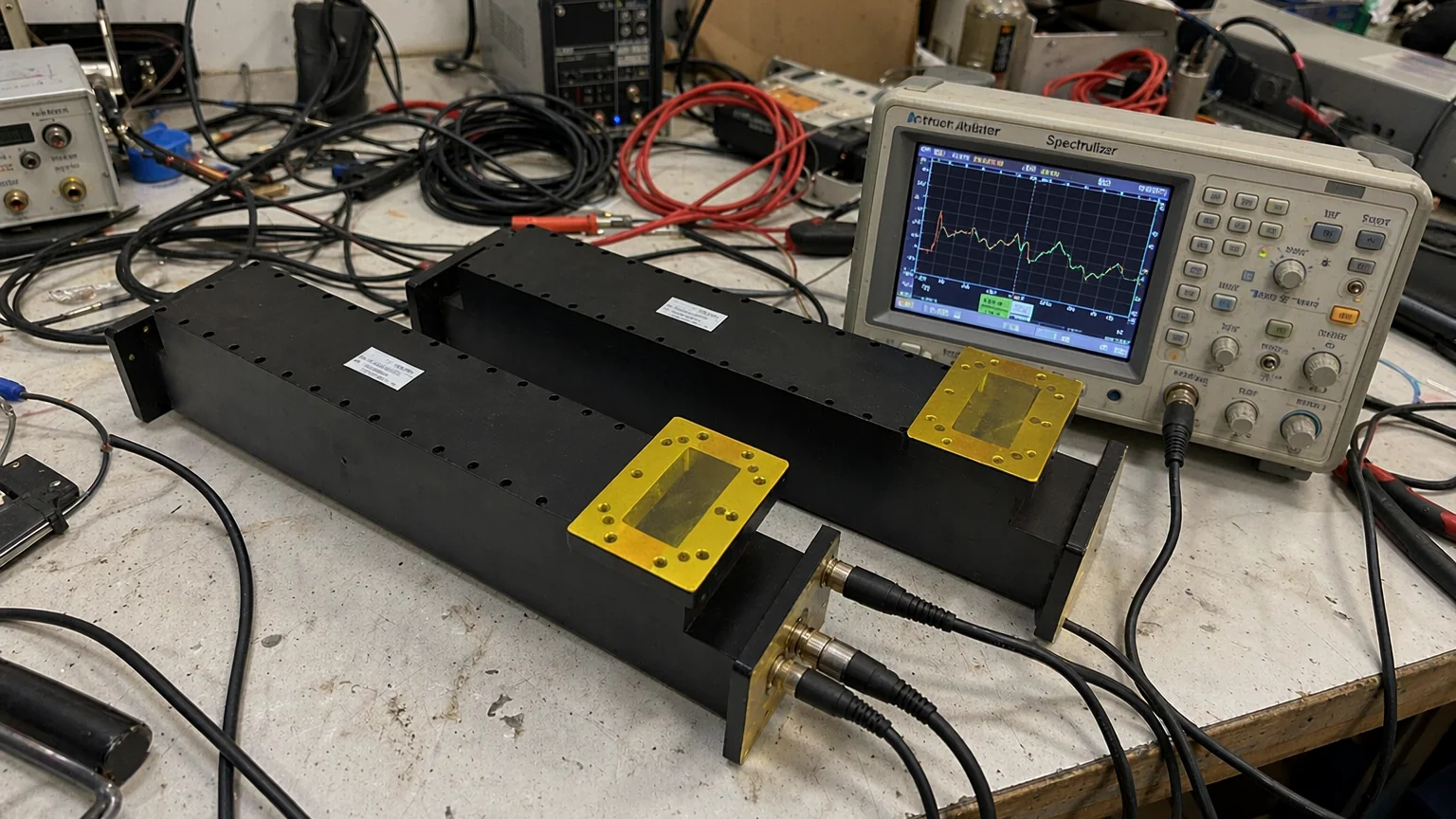

Double Ridge Waveguide Assemblies from 0.84~40GHz

Dolph Microwave’s double ridge waveguide components consist of 18 models that include WRD-84, WRD-650 and WRD-180 sizes, frequency range 0.84~40GHz.

• Product options include double ridge:
• Straight sections, bends, twist configurations, flexible waveguide
• Termination/load, coupler, fixed attenuator
• Magic T divider/combiner, rotating joint, bulkhead feed unit
• as well as a series of double ridge waveguide-to-coax adapters.
• In addition, we also offer custom double ridge waveguide assemblies.

These transmission line components deliver superior RF performance, cover wider frequency bands and offer lower cut-off frequencies compared to conventional rectangular waveguide WRD-180(18-40GHz), WRD-650 (6.5 to 18 GHz), WRD-750 (7.5 to 18 GHz) sizes. Dolph’s double ridge / Standard rectangular waveguide components are available for within 4 weeks shipping. For more information feel free to call us and discuss your needs with us.
