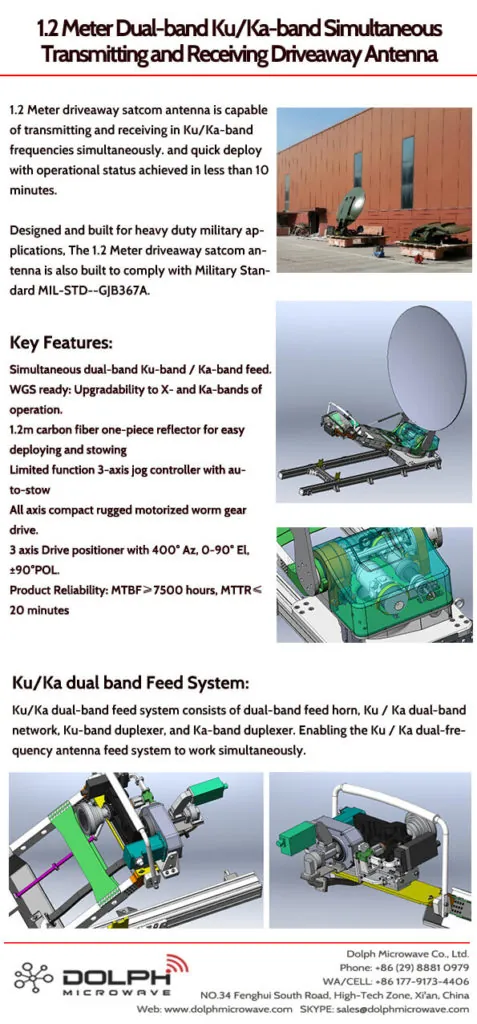

【Product Recommendation】1.2 Meter Driveaway Antenna for Dual-band Ku/Ka-band Simultaneous Transmitting and Receiving

  Dolph Microwave 1.2 Meter driveaway antenna for Ku/Ka dual band . Rugged packaging, robust wind performance, ease of operation and post-delivery customer support at a very competitive price.   1.2 Meter driveaway antenna is capable of transmitting and receiving in Ku/Ka-band frequencies simultaneously. and quick deploy with operational status achieved in less than 10 minutes.   Designed and built for heavy duty military applications, The 1.2 Meter driveaway satcom antenna is also built to comply with Military Standard MIL-STD–GJB367A.

• Simultaneous dual-band Ku-band / Ka-band feed.
• WGS ready: Upgradability to X- and Ka-bands of operation.
• 1.2m carbon fiber one-piece reflector for easy deploying and stowing
• Limited function 3-axis jog controller with auto-stow
• All axis compact rugged motorized worm gear drive
• 3 axis Drive positioner with 400° Az, 0-90° El, ±90°POL
• Product Reliability: MTBF≥7500 hours, MTTR≤20 minutes
• Temperature: outdoor -40℃ ~ +60℃, indoor -20℃ ~ +50℃
• High-wind tolerance design, operational winds: 35m/s
• MIL-STD-GJB367A and EMC-GJB151A Compliant



Ku/Ka dual band Feed System

  Ku/Ka dual-band feed system consists of dual-band feed horn, Ku / Ka dual-band network, Ku-band duplexer, and Ka-band duplexer. Enabling the Ku / Ka dual-frequency antenna feed system to work simultaneously.
