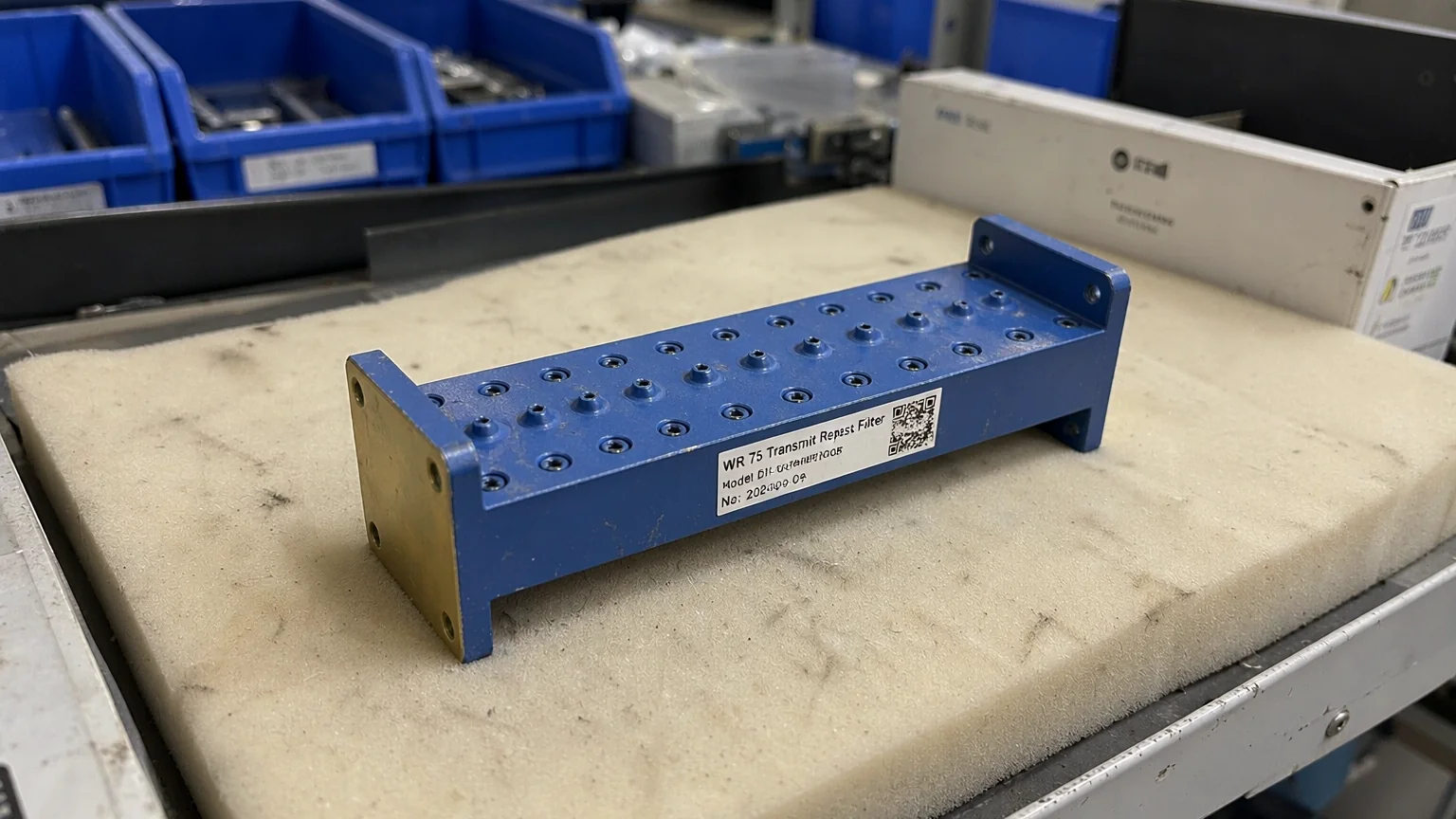

【Ku-Band Transmit Reject Filter】Rejectband: 13.75 –14.5 / Passband: 10.7-12.75 GHz

This Ku-band transmit reject filter is designed for Ku band satcoms transmitter applications for suppressing broad band noise in the receive band from a transmitter output. It fully rejects the transmit band (above) and virtually all undesired transmissions (below) the receive band.

Specifications:

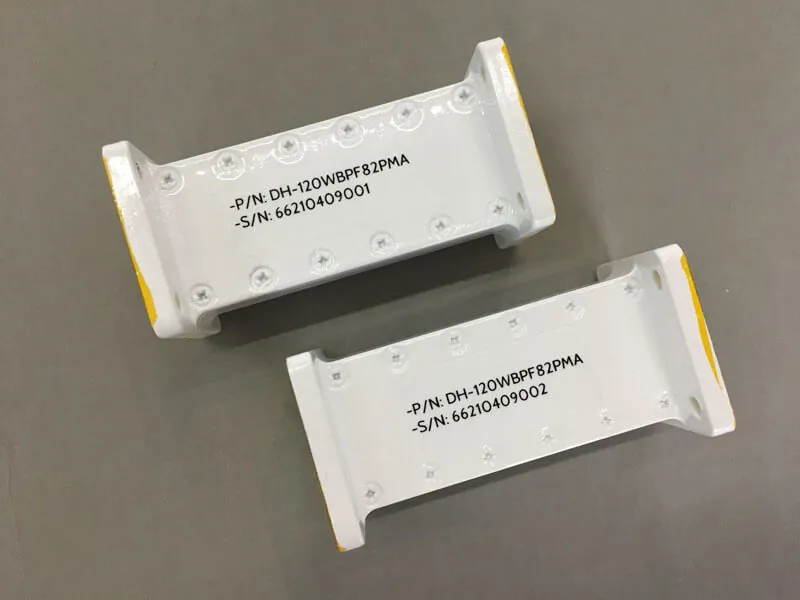

• Model number: DH-120WBPF82PMA
• Rejectband: 13.75 –14.5 GHz
• Passband: 10.70-12.75 GHz
• Insertion Loss: 0.25 dB Typ
• VSWR: 1.20:1 Typ
• Rejection: 65 dB Typ, 60 dB Min from 13.75 – 14.50 GHz

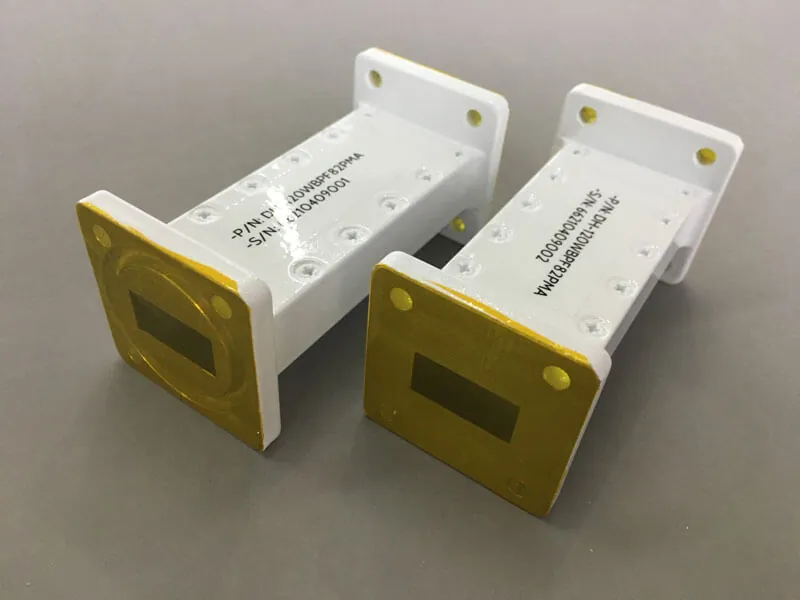

• Flanges: WR75 Cover
• Dimensions: 3.22″ x 1.5″ x 1.5″(82mm x 38mm x 38mm)
• Finish: Anticorrosion White Paint
• Weight: ＜200g

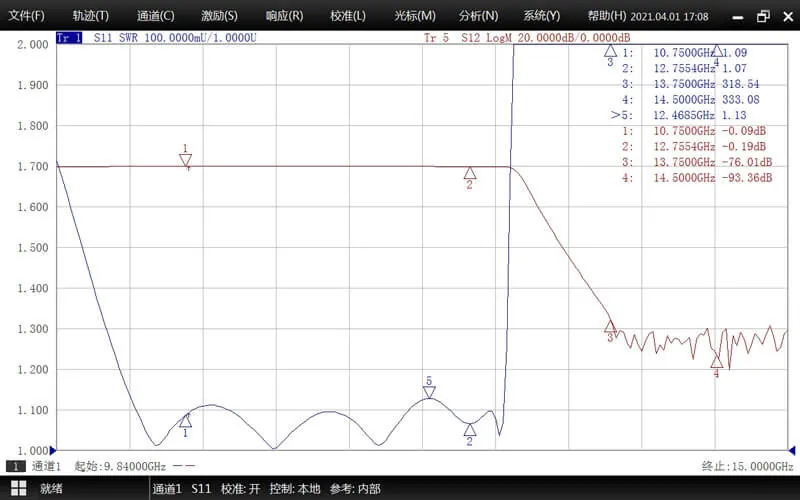

Test Data:

Please contact Dolph Microwave sales if you do not see the Waveguide Magic Tee configuration your high-power microwave application requires.
