【Single-polarized Slotted Waveguide Array Antenna Manufacturer | Dolph Microwave】X-band Weather Radar Slotted Waveguide Array Antenna

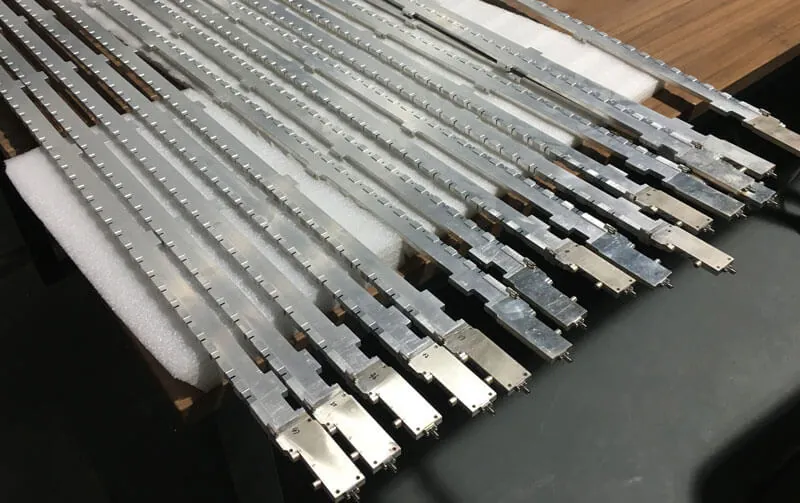

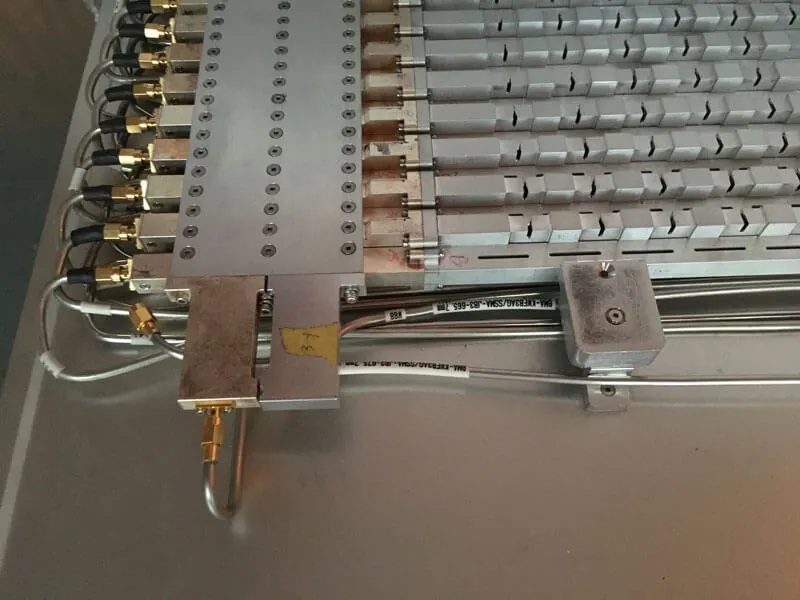

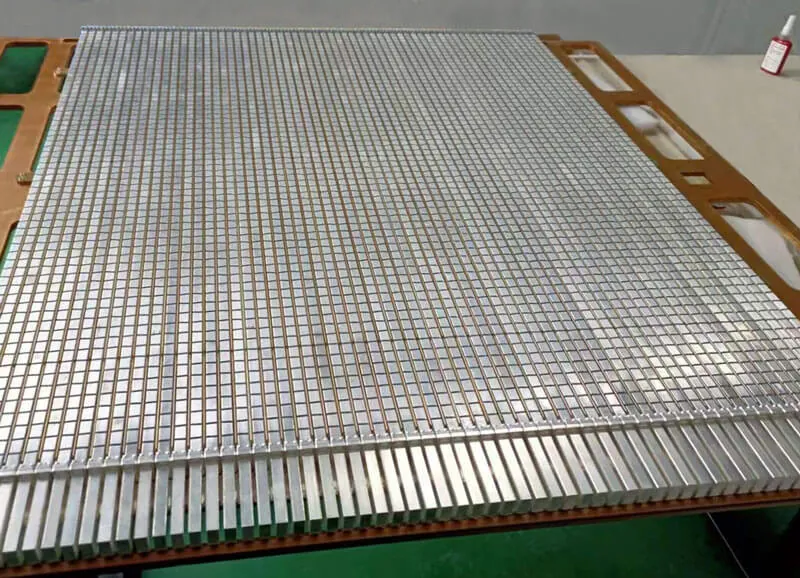

The narrow-side oblique slit traveling slotted waveguide array antenna is designed to suppress cross-polarization through the dual design of choke groove and polarization grid. The product has the characteristics of high gain, low sidelobe, wide scanning angle and low cross-polarization.

DH-SWRAX04-64-LPS-SMA is a weather resistant X-band slotted waveguide array antenna that operates from 8.2 to 12.5 GHz. The antenna offers 39 dBi nominal gain and a typical half power beamwidth of 1.6°*(1±10%) degrees, respectively. Compared to microstrip antennas, the slotted waveguide array antenna offers higher aperture efficiency. The antenna also offers typical side lobes of -25 dB or better and cross polarization: ≤-30dB, supports linear, vertical polarized waveforms. The input of this antenna is a SMA-K.

X-band Slotted Waveguide Array Antenna specifications are as follows:

• Model: DH-SWRAX04-64-LPS-SMA
• Working system: one-dimensional phase scan, wide-beam and narrow-beam, digital multi-beam
• Working frequency band: X-band, bandwidth 400MHz
• Number of channels: 64
• Polarization mode: horizontal polarization
• Electric scanning range: ±45°
• Antenna gain: ≥39dBi (receiving state) ≥27dBi (emission state)
• Beam width: 1.6°*(1±10%)
• Sidelobe level: ≤-25dB
• Cross polarization: ≤-30dB
• Transmit beamforming: The transmit beam has multiple wide beamforming modes such as 4 beams, 8 beams, 16 beams, etc., which can be flexibly switched according to actual application scenarios.
• Standing wave: VSWRS≤1.5
• Dimensions: 1576mm (width) *1450mm (height) *66mm (thickness), tolerance ±0.5mm
• Weight: ≤75kg
• Interface mode: SMA-K
• Protection level: IP64

Please contact us if you need more units than what is available online.
