【Waveguide Rotary Joint】Waveguide, WR-75, Ku-band Rotary Joint, L-STYLE

Dolph Microwave’s waveguide rotary joint available styles defines by physical geometry as follows: U, L, I or F configuration, and WR-284 to WR-28 waveguide sizes. In short, Rotary Joints (rotary couplers) applies to transmit microwave energy from stationary lines to rotating lines. Also, We designs and manufactures single channel, multi-channel waveguide and/or coaxial rotary joints (rotary couplers), with various channel configurations, as well as interface standards and designs, and that suit customer’s mechanical constraints and RF requirements.

Features

• Extremely low insertion loss and VSWR, High power
• Waveguide Rotary Joint Models Cover C, X, Ku, K, Ka Frequency Bands up to 40 GHz
• Power Handling Capability up to 12 kW CW and 320 kW Peak
• Multiple single channel and dual channel designs available
• Waveguide Rotary Joint modules are available for:
• I-style – Two in-line arms both collinear with the axis of rotation.
• L-style – One arm is perpendicular to the axis of rotation.
• U-style – Both arms are perpendicular to the axis of rotation.
• Lifetime – at least 10 years(>5*10⁶)

Specifications

• Model：DH-120WRJLPMA
• Frequency Range：13.75-14.5 GHz
• VSWR (Max)：1.2:1
• VSWR WOW：0.05
• Insertion Loss (Max)：0.3dB
• Insertion loss WOW：0.05dB
• Mechanical Specifications
• Waveguide Type：WR75
• Style：L-style
• Flange：FBP120/FBM120
• Material：Al
• Finish : Conductive oxidation

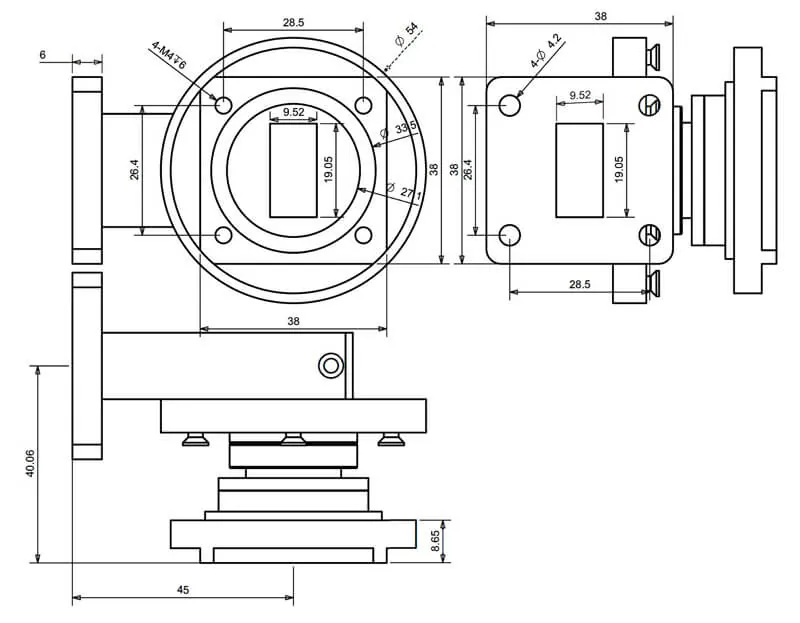

Outline Drawing

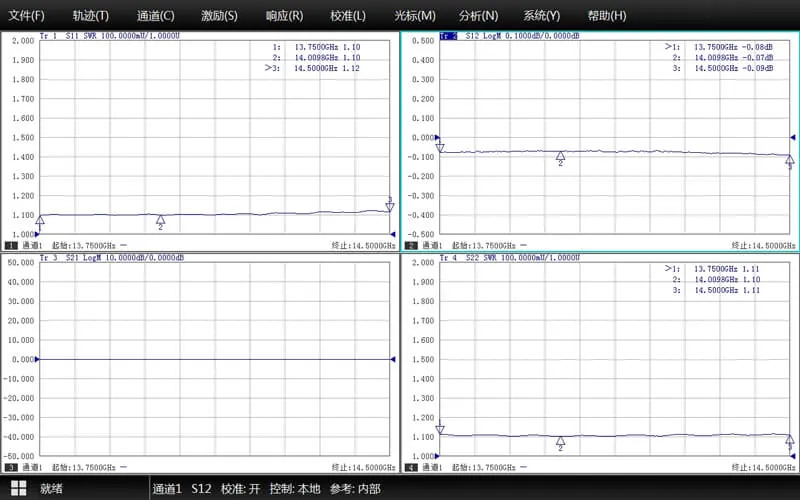

Test Curve

Packing and shipping

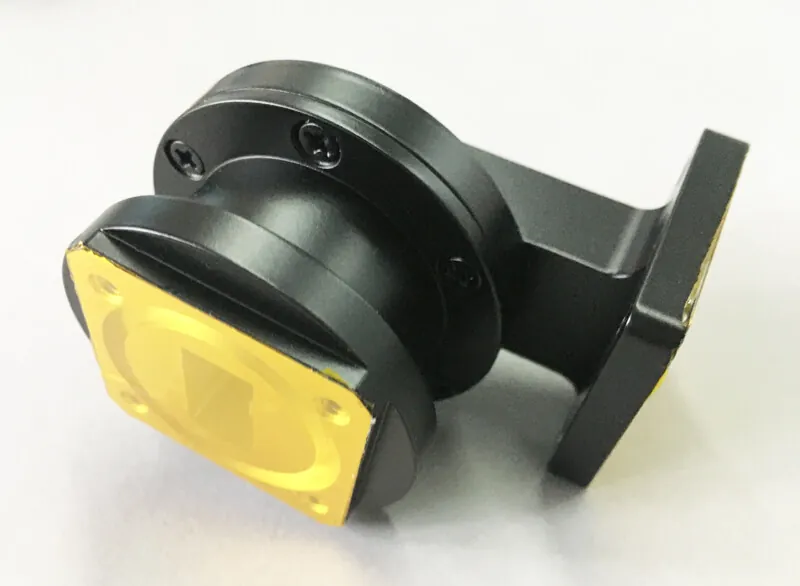

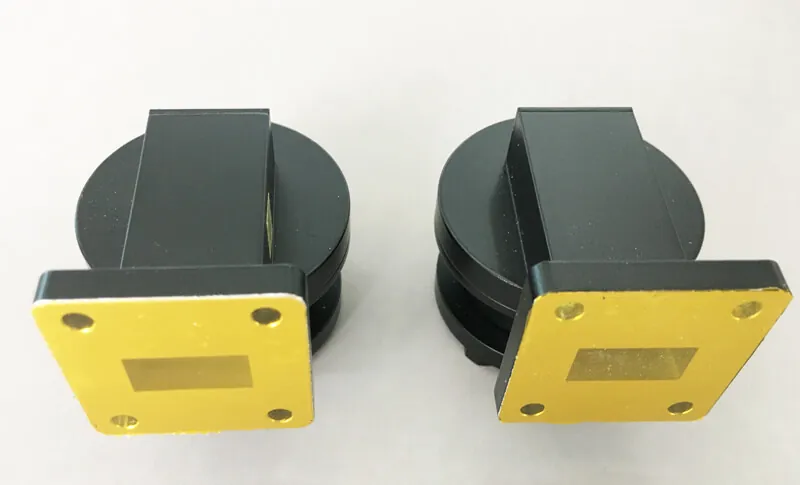

  The details of Waveguide Rotary Joint are above in the figure below and more details can be find on our web.
